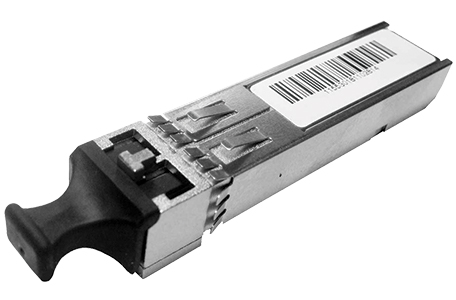

Lynx Technik 12G-SDI Single Optical Transmitter SFP Module (SM, 1310nm, LC connector, 10Km)

The OH-TX-12G-LC SDI optical transmitter is an integrated or plug-in option for select LYNX Technik products. This SFP module converts electrical SDI signals into optical signals for fiber transmission. Operating at a fixed 1310nm wavelength, it supports distances up to 10 kilometers over single-mode fiber. The module accommodates 12G, 6G, 3G, and 1.5G SDI signals conforming to SMPTE 2082, 424M, and 292M standards. A socket or "cage" is provided in the supporting LYNX product for easy installation or upgrade, and the SFP is hot-swappable.

Key Features

• SDI multi-rate optical transmitter supporting 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI
• Compliant with SMPTE 2082, SMPTE 424M, and SMPTE 292M standards
• Fixed 1310nm wavelength (non-CWDM)
• Supports transmission distances up to 10 kilometers over single-mode fiber
• Compatible with yellobrik and greenMachine product lines
• Pluggable and hot-swappable design
• LC connector for single-mode fiber
• Lead-free and RoHS compliant

Technical Specifications

Transmitter Specifications

• Wavelength: 1290nm (Min), 1310nm (Typ), 1360nm (Max)
• Optical Power: -5dBm (Min), 0.5dBm (Max)
• Distance: Typically up to 10 kilometers
• Linear Extinction Ratio: 3.5 (Min)

General Specifications

• Operating Temperature Range: 5ºC to 40ºC
• Power Supply Voltage: 3.1 VDC (Min), 3.3 VDC (Typ), 3.5 VDC (Max)
• Power Consumption: 135mA (Typ), 150mA (Max)
• Humidity (non-condensing): Up to 90%
• Dimensions: 57mm x 13.4mm x 12.4mm
• Weight: 50g
• SFP Connector Pinning: MSA compliant
• Fiber Connections: LC connector for single-mode fiber

Ordering Information

• OH-TX-12G-LC: 12G SDI Optical Transmitter
