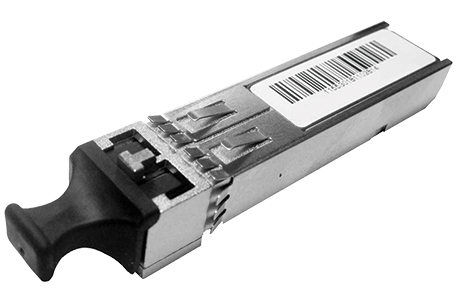

Lynx Technik yellobrik OH-TR-0-850-MM Fiber Optic Transceiver Option Multimode (LC)

The OH-TR-0-850-MM is engineered to facilitate the conversion of electrical SDI signals into optical signals for transmission over fiber, and vice versa. This transceiver supports multi-rate SDI formats, including 3G-SDI, HD-SDI, and SD-SDI, conforming to SMPTE standards 424M, 292M, 259M, as well as DVB-ASI. Its compact design and hot-swappable capability make it an ideal choice for enhancing the flexibility and scalability of compatible LYNX Technik products.

Key Features

• Integrated receiver and transmitter in a single module.
• Supports multi-rate SDI signals: 270Mbit/s, 1.485Gbit/s, and 2.97Gbit/s.
• Fixed 850nm wavelength suitable for multimode fiber applications.
• LC duplex fiber connection for reliable connectivity.
• Supports transmission distances up to 300 meters at 3Gbit/s over multimode fiber.
• Compatible with yellobrik and Series 5000 product lines.
• Pluggable and hot-swappable design for easy installation and maintenance.

Technical Specifications

Optical Characteristics

• Wavelength: 850nm (fixed)
• Fiber Type: Multimode
• Connector Type: LC Duplex
• Maximum Transmission Distance: Up to 300 meters at 3Gbit/s

Supported Standards

• SMPTE 424M (3G-SDI)
• SMPTE 292M (HD-SDI)
• SMPTE 259M (SD-SDI)
• DVB-ASI

Compatibility

• Designed for use with LYNX Technik yellobrik and Series 5000 product lines.

Ordering Information

• OH-TR-0-850-MM: Fiber Optic Transceiver Option Multimode (LC)
