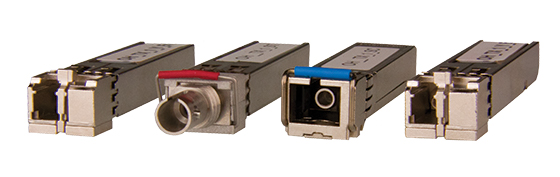

Lynx Technik yellobrik OH-RX-1 LC/SC/ST Fiber Optic Basic Receiver Option 10km
SKU
OH-RX-1-LC
£139.32
£116.10
In stock
The LYNX Technik OH-RX-1-LC is a versatile, multi-rate SDI optical receiver module designed to convert optical SDI signals into electrical signals for further processing.
The OH-RX-1-LC module facilitates the seamless conversion of optical SDI signals into electrical form, supporting a wide range of data rates, including 270Mbit/s, 1.485Gbit/s, and 2.97Gbit/s, conforming to SMPTE 424M, 292M, 259M, and DVB-ASI standards. Its compatibility with wavelengths ranging from 1260nm to 1620nm ensures flexibility across various optical infrastructures. Designed for easy integration, the module is pluggable and hot-swappable, allowing for straightforward installation or upgrades within supporting LYNX products.
Key Features
- SDI multi-rate optical receiver supporting 3G-SDI, HD-SDI, and SD-SDI signals
- Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards
- Supports wavelengths between 1260nm and 1620nm
- Designed for use with yellobrik and Series 5000 product lines
- Pluggable and hot-swappable for easy installation
- Available with LC, SC, or ST connectors (single-mode fiber only)
- Lead-free and RoHS compliant
Technical Specifications
Optical Receiver
- Data Rates Supported:
- 270Mbit/s (SD-SDI)
- 1.485Gbit/s (HD-SDI)
- 2.97Gbit/s (3G-SDI)
- Wavelength Range: 1260nm to 1620nm
- Receiver Sensitivity:
- -18dBm for 2.97Gbit/s
- -18dBm for 1.485Gbit/s
- -18dBm for 270Mbit/s
- Maximum Input Power (Overload): -1dBm
- Loss of Signal Asserted: -35dBm
- Loss of Signal De-Asserted: -18dBm
- Optical Hysteresis: 0.5dBm to 2dBm
General Specifications
- Operating Temperature Range: 5ºC to 40ºC
- Power Supply Voltage: 3.1VDC to 3.5VDC
- Power Consumption: Typical 100mA, Maximum 150mA
- Humidity: Up to 90% (non-condensing)
- Dimensions (excluding connector): 57mm x 13.4mm x 12.4mm
- Weight: 50g
- SFP Connector Pinning: MSA compliant
- Fiber Connections: LC, SC, or ST simplex (single-mode)
Ordering Information
- OH-RX-1-LC: Fiber Optic Basic Receiver Option - 10km - LC Connector
- OH-RX-1-Y-SC: Fiber Optic Basic Receiver Option - 10km - SC Connector
- OH-RX-1-Y-ST: Fiber Optic Basic Receiver Option - 10km - ST Connector
| SKU | OH-RX-1-LC |
|---|---|
| EAN | 4250479318243 |
| Manufacturer | Lynx Technik |
| In Stock | Y |
