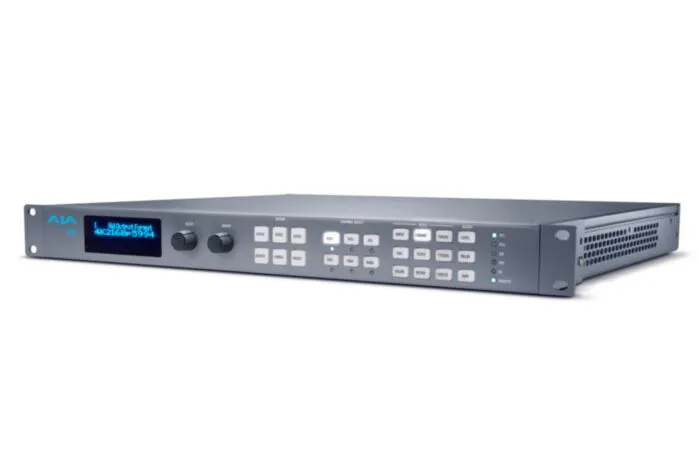

AJA FS4 4-Channel 2K/HD/SD or 1-Channel 4K/UltraHD Frame Sync and Up, Down, Cross-Converter

SKU

FS4-R0

Skip to the beginning of the images gallery

£5,336.28 £4,446.90

Available to order

The AJA FS4 is a flexible frame synchronizer and converter that operates as either a four-channel 2K/HD/SD or a single-channel 4K/UltraHD device. It provides extensive connectivity options, including optional 12G-SDI Fiber LC and 12G-SDI BNC SFP modules, and supports comprehensive audio integration with MADI, embedded, and AES audio channels. The FS4 offers real-time format conversion and can be controlled remotely via a web-based interface, making it an ideal solution for diverse professional video workflows.

Shipping Made Easy

Free Delivery, Every Order

Tech You Trust

UK’s Leading IT Supplier

Quality & Experience

25+ Years of Quality

Your Security, Our Priority

100% Secure Payment

Available to order - Estimated delivery in 1-2 weeks. Subject to availability.

More Information

More Information
SKU	FS4-R0
Manufacturer	AJA
Availability	Y

Description

AJA FS4 - 4-Channel 2K/HD/SD or 1-Channel 4K/UltraHD Frame Synchronizer and Converter Overview The AJA FS4 is a versatile frame synchronizer and converter that can operate as a four-channel device for 2K/HD/SD signals or as a single-channel device for 4K/UltraHD signals. Housed in a compact 1RU frame, the FS4 offers extensive connectivity options, including digital and optional 12G-SDI Fiber LC and 12G-SDI BNC SFP connectivity, making it suitable for a wide range of professional video applications. Key Features

Multi-Channel Conversion: Operates in two modes: four independent channels of 2K/HD/SD conversion or a single channel of 4K/UltraHD conversion, providing flexibility to meet various production needs.
Extensive Connectivity: Equipped with a wealth of digital I/O options, including 3G-SDI, HDMI, and optional 12G-SDI Fiber LC and 12G-SDI BNC SFP modules, ensuring compatibility with a wide range of equipment.
Comprehensive Audio Support: Supports 64-channel MADI audio over coax or fiber, 16-channel embedded audio per SDI connection, and 8-channel AES audio, facilitating complex audio workflows.
Flexible Conversion Capabilities: Offers real-time up, down, cross-conversion between SD, HD, and 4K/UltraHD formats, allowing seamless integration of disparate video formats.
Web-Based Control: Features an integrated web server for remote configuration and control via any standard web browser, enhancing operational convenience.

Technical Specifications

Video Inputs:
- 4x 3G-SDI BNC connectors, supporting SD/HD/2K/4K/UltraHD formats.
- Optional 12G-SDI Fiber LC and 12G-SDI BNC SFP modules for extended connectivity.
Video Outputs:
- 4x 3G-SDI BNC connectors, supporting SD/HD/2K/4K/UltraHD formats.
- Optional 12G-SDI Fiber LC and 12G-SDI BNC SFP modules for extended connectivity.
Audio Inputs/Outputs:
- 64-channel MADI audio over coax or fiber.
- 16-channel embedded audio per SDI connection.
- 8-channel AES audio.
Reference Input:
- Analog Color Black or HD Tri-Level Sync.
Control:
- Web-based user interface for remote control and configuration.
- Front panel controls with LCD display for local operation.
Power:
- Dual redundant power supplies with auto-sensing 100-240 VAC input.
Dimensions (W x D x H):
- 19" x 12" x 1.75" (482.6mm x 304.8mm x 44.45mm).
Weight:
- Approximately 10 lbs (4.54 kg).
