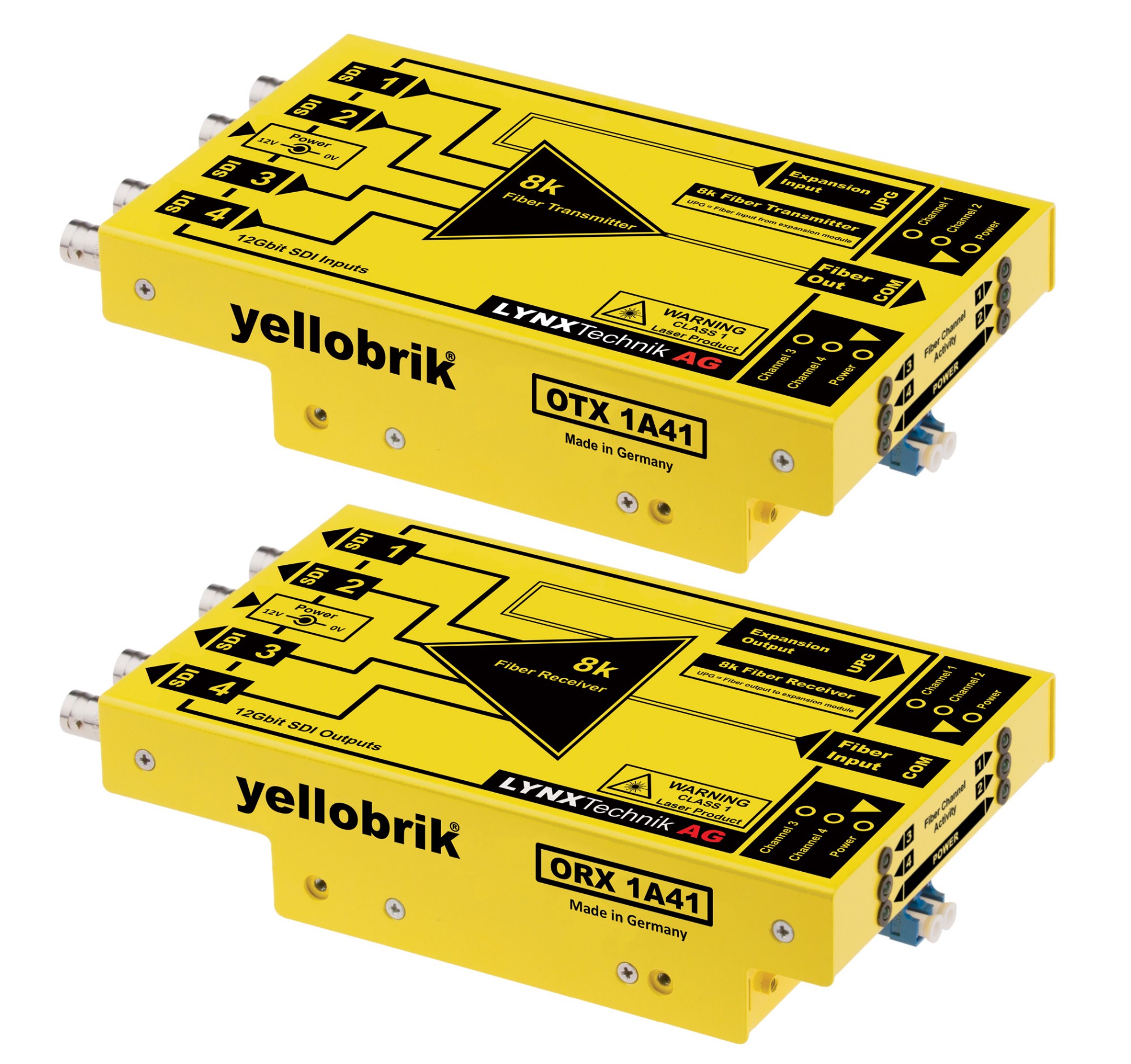

Lynx Technik yellobrik OTR 1A41 8K Fiber Transmission System [1270nm - 1330nm]

The OTR 1A41 facilitates the seamless transmission of up to four independent SDI channels, each supporting resolutions up to 2160p/60Hz. For 8K applications, the system splits the signal over four separate 12G SDI links (totaling 48G), accommodating full 8K resolution at 60fps. Each channel automatically detects and reclocks SDI bit rates of 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s, ensuring compatibility with various formats. The system also supports embedded audio and metadata for each channel. LED indicators provide real-time status for channel activity and power. An optional 19” rack mount tray (RFR 1018) is available to accommodate up to four modules, offering flexibility in installation.

Key Features

• Supports four independent 12G/6G/3G/HD channels
• Transports uncompressed 8K signals up to 10 km (6.2 miles)
• Wavelengths: 1270nm, 1290nm, 1310nm, 1330nm
• Each channel supports resolutions up to 2160p/60Hz
• Each channel is individually reclocked
• Supports embedded audio and metadata for each channel
• Integrated expansion port to add more channels
• LED indicators for channel activity and power
• Kit includes transmitter, receiver, and power supplies
• Optional 19” rack tray to mount up to four modules

Technical Specifications

SDI Inputs (Transmitter)

• 4 x multi-format 12G/6G/3G/HD/SD-SDI inputs
• 75 Ω BNC connections
• Compliant with SMPTE 259M-2008, SMPTE 292-1:2012, SMPTE 292-2:2011, SMPTE 424M-2006, SMPTE ST-2082

SDI Outputs (Receiver)

• 4 x multi-format 12G/6G/3G/HD/SD-SDI outputs
• 75 Ω BNC connections
• Compliant with SMPTE 259M-2008, SMPTE 292-1:2012, SMPTE 292-2:2011, SMPTE 424M-2006, SMPTE ST-2082

Optical Specifications

• Wavelengths: 1270nm, 1290nm, 1310nm, 1330nm
• Optical budget: 10.6dB
• Maximum distance: Up to 10 km (6.2 miles)
• Fiber type: Single-mode
• Fiber connections: LC connectors

Power

• Operating voltage: +12V DC nominal
• Power consumption: OTX 1A41 (Transmitter) = 5.4W, ORX 1A41 (Receiver) = 4.4W
• External power input range: 9 - 17 V DC
• Two power LEDs provided on each module

Physical

• Dimensions (each module): 170 x 99.7 x 40.5 mm (6.7” x 3.9” x 1.6”)
• Weight (each module): 600g (21.1 oz)

Environmental

• Operating temperature: 5 - 40ºC (41 - 104ºF)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTR 1A41: 8K Fiber Transmission System [1270nm - 1330nm]
• OTR 1A42: 8K Fiber Transmission System [1350nm - 1410nm]
• RFR 1018: yellobrik 0.5RU Rack Frame for passive fiber modules
• LC/FC Dup: LC Connector to FC Connector Adapter Kit (Duplex)
• LC/SC Dup: LC Connector to SC Connector Adapter Kit
• LC/ST Dup: LC Connector to ST Connector Adapter Kit
