Lynx Technik yellobrik OTR 1A42 8k Fiber Transmission System [1350nm - 1410nm]

The OTR 1A42 system facilitates the seamless transmission of high-bandwidth video signals by converting up to four discrete 12G SDI signals into optical format for long-distance transport. Each SDI channel operates independently, supporting resolutions up to 2160p at 60Hz, and automatically detects and reclocks SDI bit rates of 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s. For 8K applications, the system splits the signal over four separate 12G SDI links (totaling 48G), ensuring uncompressed transmission without compromising quality. The integrated expansion port allows for scalability, enabling the addition of more channels as needed. LED indicators provide real-time status for channel activity and power, ensuring straightforward monitoring and maintenance.

Key Features

• Supports four independent channels at 12G, 6G, 3G, 1.5G, and 270M SDI rates
• Enables uncompressed 8K signal transport up to 10 km (6.2 miles)
• Each channel supports resolutions up to 2160p at 60Hz
• Individual reclocking for each channel
• Embedded audio and metadata support for each channel
• Integrated expansion port for channel scalability
• LED indicators for channel activity and power status

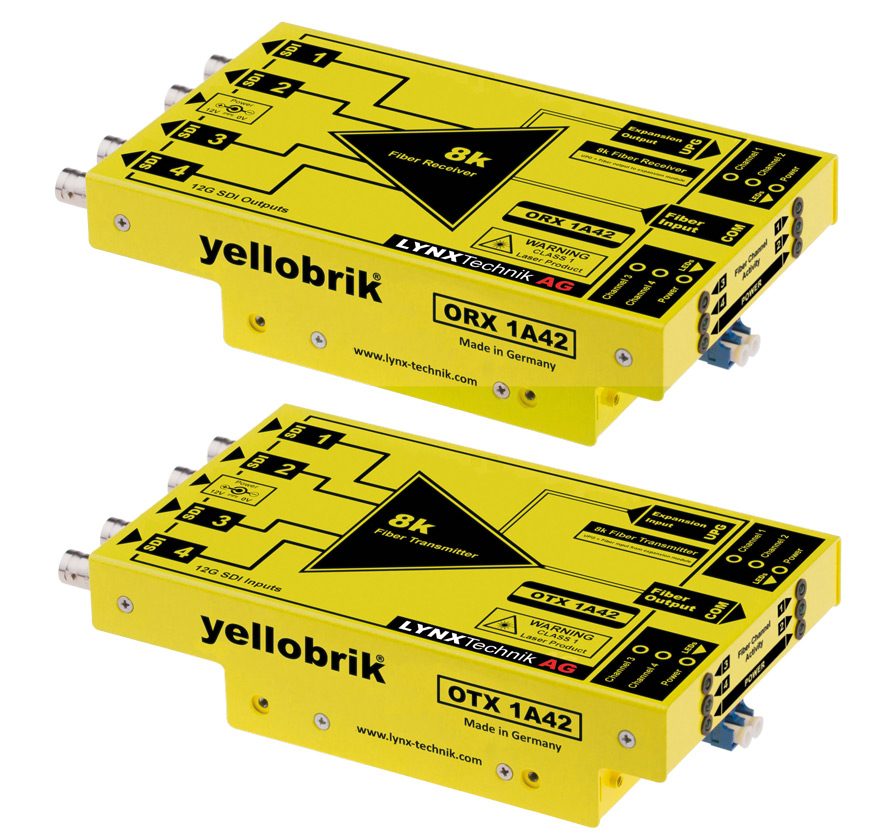

• Includes both transmitter and receiver modules with power supplies
• Optional 19” rack tray available to mount up to four modules

Technical Specifications

SDI Video

• Inputs: 4 x SDI on 75 Ohm BNC connections (OTX 1A42)
• Outputs: 4 x SDI on 75 Ohm BNC connections (ORX 1A42)
• Standards: SMPTE 259M-2008, SMPTE 292-1:2012, SMPTE 292-2:2011, SMPTE 424M-2006, SMPTE ST-2081, SMPTE ST-2082
• Automatic detection and multi-standard/multi-format operation
• Multi-rate reclocking: 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 12Gbit/s
• Electrical Return Loss:
  • >15dB up to 1.5GHz
  • >10dB up to 3GHz
  • >7dB up to 6GHz
  • >4dB up to 12GHz
• Automatic cable equalization:
  • 250m at 270Mbit/s (Belden 1694A)
  • 190m at 1.5Gbit/s (Belden 1694A)
  • 140m at 3Gbit/s (Belden 1694A)
  • 80m at 12Gbit/s (Belden 4794R)

Fiber Optics

• Fiber I/O Port: 1 x COM port (LC/PC connection)
• Expansion Port: 1 x UPG port (LC/PC connection)
• Standard: SMPTE 297M-2006
• Internal CWDM Multiplexing Wavelengths: 1350nm, 1370nm, 1390nm, 1410nm
• Optical Budget: 10.6dB
• Maximum Distance: Up to 10 km (6.2 miles)
• Fiber activity LEDs for each channel

Power Requirements

• Input Voltage: +12V DC (supports input range 7 - 24V DC)
• Power Consumption:
  • OTX 1A42: 5.4W
  • ORX 1A42: 4.4W
• Power LEDs on each module

Physical Characteristics

• Dimensions (including connectors): 170mm x 99.7mm x 40.5mm (6.7” x 3.9” x 1.6”)
• Weight: 600g (21.1oz) per module
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTR 1A42: 8K Fiber Transmission System [1350nm - 1410nm]
• OTR 1A41: 8K Fiber Transmission System [1270nm - 1330nm]
• OBD 1510 E: Ethernet to Fiber Bidirectional Transceivers (switch)
• OBD 1510 D: RS232/422/485 Serial and GPI Bidirectional Fiber Transceiver
• RFR 1018: yellobrik 0.5RU Rack Frame for passive fiber modules
• LC/SC Dup: LC Connector to SC Connector Adapter Kit
• LC/FC Dup: LC Connector to FC Connector Adapter Kit (Duplex)
• LC/ST Dup: LC Connector to ST Connector Adapter Kit
