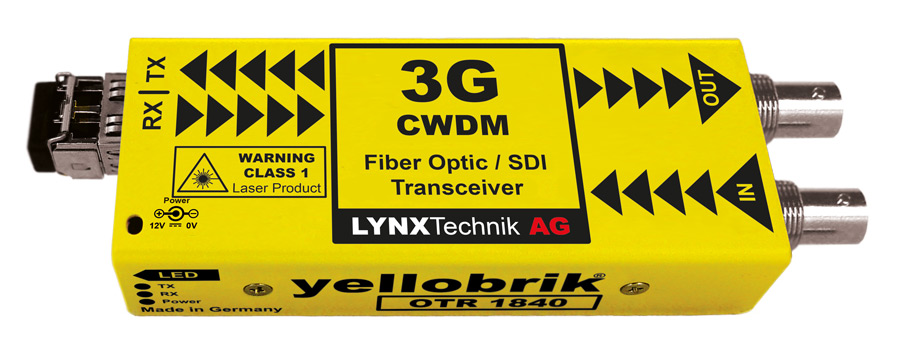

Lynx Technik yellobrik OTR 1840-1 3G Fiber Optic / SDI Transceiver (CWDM)

The OTR 1840-1 addresses the challenges of distributing uncompressed broadcast-quality video signals over long distances. By integrating both transmitter and receiver functionalities in a single module, it provides a cost-effective solution for transporting SDI signals up to 3Gbit/s while maintaining full uncompressed quality. The module auto-detects and reclocks any 270Mbit/s, 1.5Gbit/s, or 3Gbit/s SDI source prior to conversion and is fully compatible with 3G Level A and Level B formats.

Key Features

• Integrated optical receiver and transmitter in a single package.
• Supports SDI video up to 3Gbit/s (1080p60).
• Compatible with 3G Level A and Level B formats.
• Auto reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s.
• Offers 18 selectable CWDM wavelengths for flexible deployment.
• Ensures error-free optical connections over long distances.
• Supports transmission distances up to 40 km (24.8 miles) at 3Gbit/s.
• Utilizes duplex LC/PC single-mode optical connections.
• Supports hot swapping and hot plugging for operational flexibility.

Technical Specifications

SDI Video

• 1 x SDI input on 75 Ohm BNC connector.
• 1 x SDI output on 75 Ohm BNC connector.
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards.
• Multi-standard operation from 270Mbit/s to 3Gbit/s.
• Multi-rate reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s.
• Electrical return loss: >15dB up to 1.5GHz; >10dB up to 3GHz.
• Automatic cable equalization:
  • 270Mbit/s: up to 250m (Belden 1694A).
  • 1.5Gbit/s: up to 220m (Belden 1694A).
  • 3Gbit/s: up to 150m (Belden 1694A).

Fiber Optic Interface

• 18 selectable CWDM wavelengths ranging from 1270nm to 1610nm (ITU-T G.694.2).
• Typical transmit power: -1dBm.
• Receiver sensitivity: -20dBm.
• Maximum distance: up to 40 km (24.8 miles) at 3Gbit/s.
• Duplex LC/PC single-mode optical connections.

Power Requirements

• Voltage: +12V DC (supports 7 - 24V DC input range).
• Power consumption: approximately 3.0W.

Physical Characteristics

• Dimensions: 105mm x 95mm x 22mm (4.13” x 3.74” x 0.86”) including connectors.
• Weight: 200g (7.05 oz).
• Operating temperature: 0°C to 50°C (32°F to 122°F).
• Humidity: up to 90% (non-condensing).

Ordering Information

• OTR 1840-1: 3Gbit Fiber Optic / SDI Transceiver (CWDM) - 40km.
• OH-TR-4-XXXX-LC: Fiber Optic CWDM Transceiver Option 40km (XXXX=Wavelength 1270nm to 1610nm).
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame.
• RFR 1001: yellobrik Mounting Bracket.
• LC/ST Dup: LC Connector to ST Connector Adapter Kit.
• LC/SC Dup: LC Connector to SC Connector Adapter Kit.
• XLR 1000: 4-Pin XLR Camera Battery Adapter Cable.
• P-TAP 1000: P-TAP Battery Adapter Cable.
