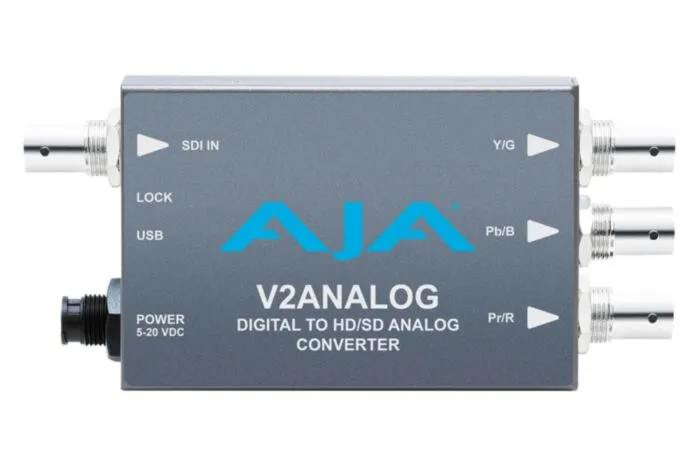

AJA V2Analog HD/SD-SDI to Analog Video Mini-Converter (V2ANALOG-R0)

AJA V2Analog - HD/SD-SDI to Analog Mini-Converter High-quality digital-to-analog conversion The AJA V2Analog is a compact and cost-effective solution designed for professionals requiring reliable SDI-to-analog conversion. It delivers exceptional image quality using a 10-bit conversion path, seamlessly integrating analog equipment such as monitors and tape decks into modern digital workflows. Extensive format support V2Analog supports conversion of HD/SD-SDI signals into a wide range of analog formats, including YPbPr (SMPTE, EBU-N10), Betacam, RGB, NTSC/PAL, and Y/C (S-Video). This versatility ensures compatibility with a variety of professional workflows. Flexible configuration Settings can be adjusted using DIP switches on the unit or remotely through AJA’s free Mini-Config software over USB. This dual control capability allows users to configure the device for specific needs easily. Compact and portable design With its small form factor and low power consumption, the V2Analog is perfect for both on-set use and permanent installations. It can also operate on battery power for added flexibility in remote locations. Universal power compatibility The included universal power supply with international plug connections ensures the V2Analog can be used anywhere in the world. Technical Specifications

• Supported Video Formats:
  • HD: 1080i (50, 59.94, 60), 1080p (23.98, 24, 25, 29.97, 30), 1080PsF (23.98, 24, 25), 720p (50, 59.94, 60)
  • SD: 625i, 525i
• Video Input: HD/SD-SDI, SMPTE-259/292/296M, 1x BNC
• Video Outputs:
  • HD Component: YPbPr, RGB (SMPTE-274), BNC
  • SD Component: Betacam, EBU-N10, Composite, Y/C (S-Video), BNC
• Control: External DIP switches and USB port for Mini-Config software
• Power: +5-20 VDC, 3 watts
• Dimensions: 5.1” x 2.4” x 1.0” (129.54 x 60.96 x 25.4 mm)

Note: The V2Analog does not perform up-conversion or down-conversion between SD and HD resolutions; it solely supports digital-to-analog conversion.
