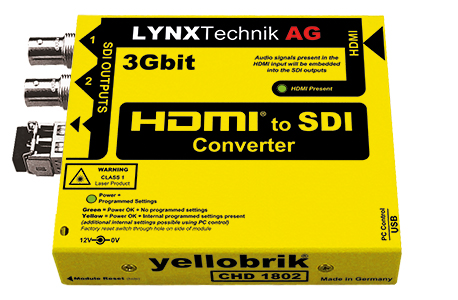

Lynx Technik yellobrik CHD 1802-1 HDMI to SDI Converter

The Yellobrik CHD 1802-1 is a compact HDMI to SDI converter, ideal for applications requiring a broadcast-quality SDI signal derived from an external HDMI source. It supports SD, HD, and 3G-SDI formats, ensuring compatibility with a wide range of professional video equipment. The module is compatible with the yelloGUI software package, providing access to additional internal settings. An optional SDI fiber output is also available via a variety of plug-in SFP modules.

Key Features

• Supports SD/HD/3G-SDI formats
• 3D support
• 2 x SDI outputs
• Optional SDI fiber output
• HDMI embedded audio passed transparently
• HDMI present LED indication
• Compatible with LynxCentraal and yelloGUI for additional internal settings

Technical Specifications

Video Formats

• SD-SDI: SMPTE 259M
• HD-SDI: SMPTE 292M
• 3G-SDI: SMPTE 424M

Video Input Digital

• 1x HDMI Type A connector
• Supports up to 8 channels of embedded audio in HDMI, passed transparently

SDI Outputs

• 2 x SDI video, 75 Ohm BNC (both outputs carry the same signal)
• SMPTE 424M, SMPTE 292M, SMPTE 259M
• 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with image formats 1280 x 720 and 1920 x 1080

Fiber Output

• Optional plug-in SFP for optical SDI output

Power

• +12V DC @ 4W nominal (supports 10 - 14V DC input range)

Physical

• Size (including connectors): 123mm x 90mm x 22mm (4.84” x 3.54” x 0.86”)
• Weight: 175g (6.17oz)

Ambient

• Operating temperature: 5 - 40ºC (41 - 104ºF)
• Humidity: 90% (non-condensing)
