Lynx Technik yellobrik CDH 1813 3Gbit SDI to HDMI Converter + 3D Support

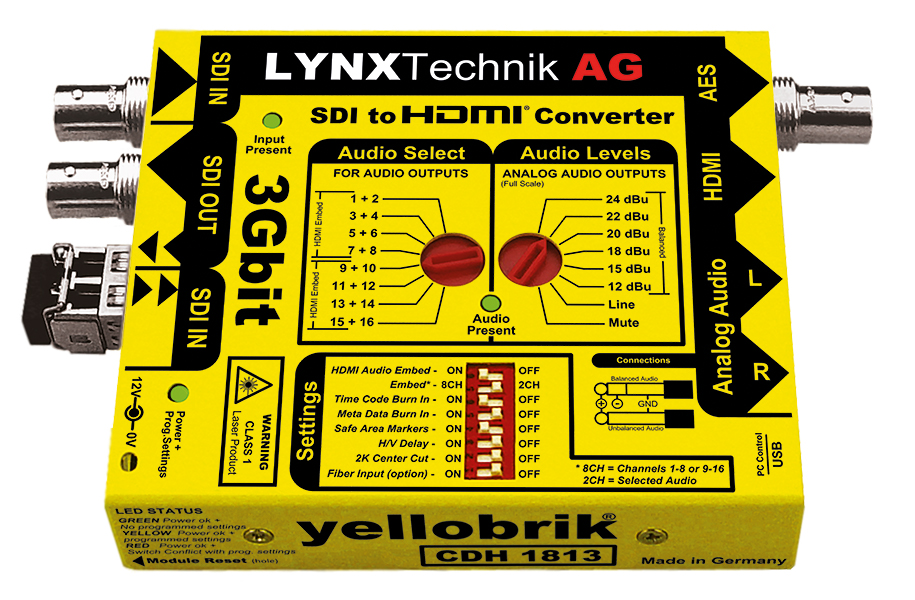

The Yellobrik CDH 1813 is a versatile, compact SDI to HDMI converter designed for monitoring and displaying uncompressed SDI video signals up to 3Gbit/s in broadcast, post-production, and professional AV markets. It converts any SDI video signal, including 3D formats, into an HDMI signal for monitoring and display. Fiber connectivity options enable SDI fiber transmission and/or reception using the integrated fiber SFP socket.

Key Features

• Support for SDI video inputs up to 3Gbit/s (1080p)
• HDR and WCG indication at HDMI output
• Automated detection of input signal color range via VPID information
• 3G SDI Level A and Level B support
• Support for single-link 3D formats
• Automatic input standard and format detection
• Fiber input and output options
• HDMI video output with embedded audio
• Analog and AES audio outputs
• Selectable timecode burn-in and metadata burn-in
• 16-channel on-screen audio meters
• H/V delay and safe area markers
• yelloGUI compatible for access to additional features

Technical Specifications

SDI Input

• 1 x SDI video on 75 Ohm BNC connector
• SMPTE 424M, SMPTE 292M, SMPTE 259M
• 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D)
• Support for 'single link' 3D modes: "side by side", "top-bottom", and "dual stream (SMPTE ST-423-2)"
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Automatic cable EQ: 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s

Fiber Input

• 1 x fiber optic SDI input, SMPTE 297M - 2006 (Optional - see fiber options table)

SDI Output

• 1 x reclocked SDI video output on 75 Ohm BNC connector
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

Fiber Output

• 1 x reclocked fiber optic SDI output, SMPTE 297M - 2006 (Optional - see fiber options table)

HDMI Output

• 10-bit HDMI 1.4a support including 3D, deep color, and embedded audio
• Type A connector
• 3D modes supported: "side by side", "top and bottom", "frame packing"
• 24-bit (3 x 8-bit) and 30-bit (3 x 10-bit) deep color
• 2 or 8 channel audio embedding (selectable)

AES Output

• AES3id on 75 Ohm BNC, 2 channels (selectable)

Audio Output

• Left and right analog audio using 1/4 inch jack sockets
• Balanced mode with 24, 22, 20, 18, 15, 12dBu full scale (selectable)
• Unbalanced mode with (line level) at -10 dBv
• 1/4 inch Jack plug (phono) to RCA connection adapters supplied

USB

• Standard USB port for yelloGUI interface and firmware updates (Mini Type “B” plug)

Power

• +12VDC @ 3.7W nominal - (supports 10 - 14VDC input range)

Physical

• Size: 138mm x 90mm x 22mm (5.13” x 3.54” x 0.86”) including connectors
• Weight: 230g (8.11oz)

Ambient

• 5 - 40ºC (41 - 104ºF), 90% Humidity (non-condensing)
