AJA T-TAP Pro Thunderbolt 3 Output – 12G-SDI & HDMI 2.0

SKU
T-TAP-PRO-R0
£1,030.42 £858.68
In stock
Only 5 left

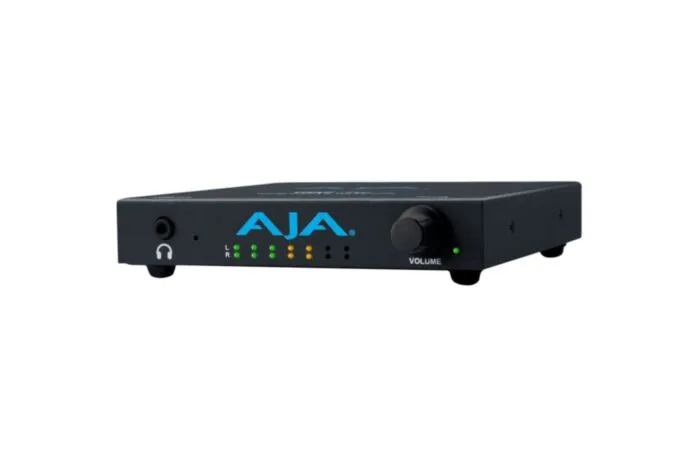

The AJA T-TAP Pro is a portable Thunderbolt™ 3-powered device offering 12G-SDI and HDMI 2.0 outputs for up to 4K/UltraHD 60p video monitoring. It supports HDR formats, embedded audio, and is compatible with popular professional video software, making it an ideal solution for high-quality video output in various production environments.
More Information
SKU T-TAP-PRO-R0
Manufacturer AJA
Availability Y
AJA T-TAP Pro - Thunderbolt™ 3 Powered 12G-SDI and HDMI 2.0 Output Device Overview The AJA T-TAP Pro is a compact and silent Thunderbolt™ 3-powered device that provides high-quality 10-bit and 12-bit video output up to 4K/UltraHD 60p. It features both 12G-SDI and HDMI 2.0 outputs, enabling simple and reliable monitoring of high frame rate, deep color, and HDR content on professional and consumer monitors. Key Features
  • 12G-SDI and HDMI 2.0 Outputs: Supports up to 4K/UltraHD 60p video over a single cable, facilitating high-quality monitoring.
  • Thunderbolt™ 3 Connectivity: Ensures high-speed data transfer and compatibility with modern Mac and PC workstations.
  • HDR Support: Compatible with HDR formats including PQ, HLG, HDR10, and Dolby Vision, allowing for accurate HDR monitoring.
  • Embedded Audio: Supports 16-channel embedded audio over SDI and 8-channel embedded audio over HDMI for comprehensive audio monitoring.
  • Compact and Portable: Its small form factor and silent operation make it ideal for on-set, in-studio, or mobile production environments.
  • Wide Software Compatibility: Works seamlessly with applications such as Apple Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, and more.
  • Headphone Output: Includes a headphone jack with quick access audio level control for convenient audio monitoring.
Technical Specifications
  • Video Outputs:
    • 1x 12G-SDI BNC with 16-channel embedded audio
    • 1x HDMI 2.0 with 8-channel embedded audio
  • Supported Video Formats:
    • 4K/UltraHD: 4096x2160p and 3840x2160p up to 60p
    • 2K/HD/SD: Various frame rates up to 60p
  • Color Spaces: RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
  • HDR Support: PQ, HLG, HDR10, Dolby Vision
  • Connectivity: 1x Thunderbolt™ 3 port
  • Audio Monitoring: Headphone jack with audio level control
  • Power Supply: Included external power adapter
  • Dimensions (W x D x H): 5.1" x 3.1" x 0.8" (130mm x 80mm x 20mm)
  • Weight: Approximately 0.5 lbs (0.23 kg)
