AJA OG-ROI-HDMI Converter – HDMI to 3G-SDI with ROI Scaling

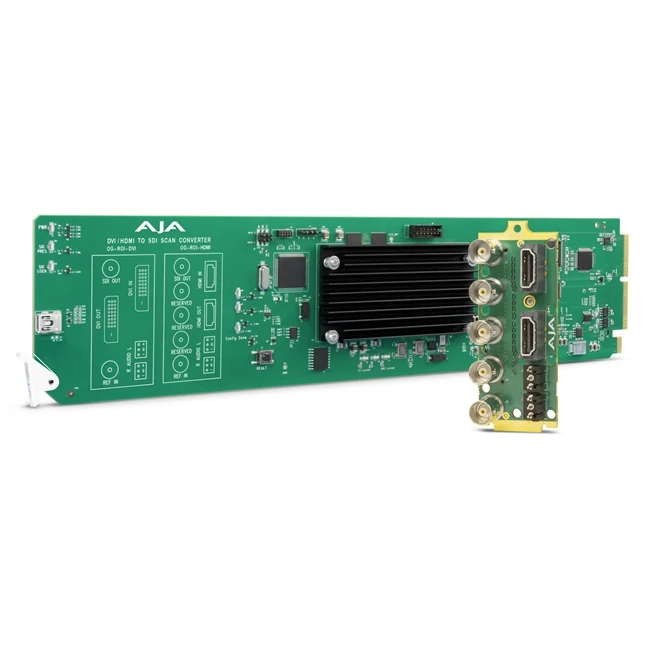

The AJA OG-ROI-HDMI is an openGear-compatible card designed for high-quality conversion of computer and HDMI outputs to 3G-SDI baseband video. It offers exceptional Region of Interest (ROI) image scaling, aspect ratio, and frame rate conversion, enabling precise extraction and integration of HDMI source signals into professional video environments without compromising budget or space.

Key Features:

• HDMI to 3G-SDI Conversion: Converts HDMI sources to 3G-SDI, facilitating seamless integration into SDI workflows.
• Region of Interest Scaling: Allows selection and scaling of specific areas from the HDMI input for output, eliminating unnecessary interface elements.
• Aspect Ratio and Frame Rate Conversion: Provides flexible aspect ratio adjustments and frame rate conversion to match project requirements.
• EDID Emulation: Ensures optimal signal integrity and compatibility by emulating the display's EDID information.
• Audio Embedding: Supports up to 8 channels of embedded audio, with options for analog audio input via 3-pin connectors or HDMI embedded audio.
• Genlock Capability: Offers reference input, HDMI input, or free-run genlock options for synchronization within broadcast environments.
• Remote Configuration: Compatible with Ross DashBoard software for remote configuration and control over Ethernet.
• openGear Compatibility: Fits within openGear frames, requiring two slots per card, and supports hot-swapping for easy installation and maintenance.
• Durable Design: Backed by a five-year warranty, ensuring long-term reliability.

Specifications:

• Video Input: 1x HDMI Type A connector supporting formats up to 1920 x 1200 at 60 Hz.
• Video Output: 1x 3G-SDI BNC connector supporting SD, HD, and 3G formats.
• Audio Input: 8-channel HDMI embedded audio or 2-channel analog audio via 3-pin connectors.
• Control Interface: Ethernet port for configuration via Ross DashBoard software.
• Power Consumption: 8 watts.
• Compatibility: Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames.

Package Includes:

• OG-ROI-HDMI openGear card
• Rear I/O module
• Documentation

Important Notes:

• Ensure proper HDMI and SDI cabling for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
