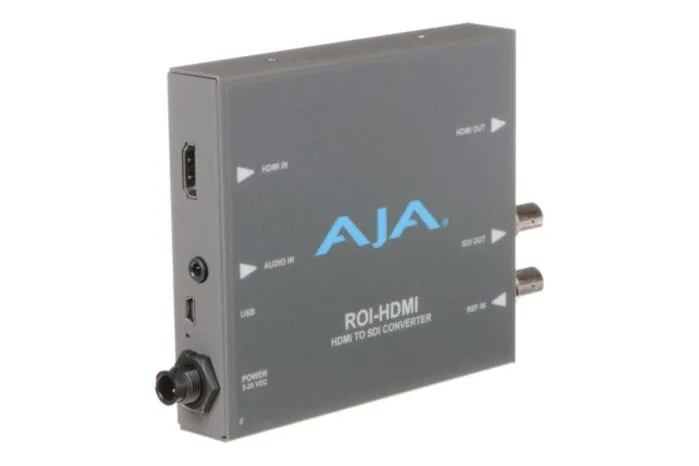

AJA ROI-HDMI HDMI to 3G-SDI Mini-Converter with ROI Scaling

The AJA ROI-HDMI Mini-Converter enables high-quality conversion of HDMI sources to 3G-SDI, offering Region of Interest (ROI) scaling, aspect ratio, and frame rate conversion. This compact device is ideal for integrating computer signals into professional video workflows without compromising budget or space.

Key Features:

• HDMI to 3G-SDI Conversion: Converts HDMI inputs to baseband video over 3G-SDI with HDMI loop-through.
• Region of Interest Scaling: Select and scale specific portions of the input signal for output.
• Aspect Ratio and Frame Rate Conversion: Adjusts output to desired aspect ratios and frame rates.
• Audio Integration: Supports 8-channel embedded audio and 2-channel analog audio inputs.
• EDID Emulation: Ensures proper handshaking with HDMI sources for optimal signal integrity.
• Genlock Capability: Offers reference input for frame synchronization.
• Flexible Control: Configure settings via USB and AJA's free Mini-Config software on PC or Mac.
• Universal Power Supply: Includes a 5-20VDC power adapter with international plug connections.
• Compact and Portable: Small form factor suitable for various professional environments.
• Warranty: Covered by a five-year warranty.

Specifications:

• Video Input: HDMI Type A connector supporting formats up to 1920x1200 at 60 Hz.
• Video Output: 3G-SDI output supporting SD, HD, and 3G formats.
• Audio Input: 2-channel analog audio via 3.5mm jack or 8-channel embedded HDMI audio.
• Audio Output: Embedded SDI audio.
• Reference Input: Analog video input for genlock.
• Power Consumption: Uses 5-20VDC power; universal power supply included.
• Operating Temperature: 0 to 40°C (32 to 104°F).

Package Includes:

• ROI-HDMI Mini-Converter
• Universal power supply with international plug adapters

Important Notes:

• Ensure proper HDMI and SDI cabling for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
