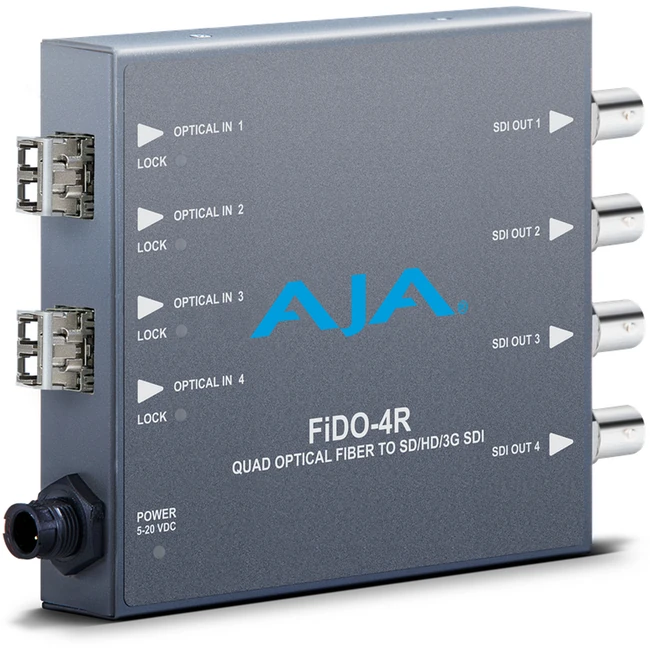

AJA FiDO-4R 4-Channel Single-Mode LC Fiber to 3G-SDI Receiver

AJA FiDO-4R - 4-Channel Single-Mode LC Fiber to 3G-SDI Receiver Overview The AJA FiDO-4R is a four-channel fiber-to-SDI receiver that enables the transport of SDI, HD-SDI, and 3G-SDI over single-mode optical fiber. It supports cable runs up to 10 km (32,808 ft) with electrical isolation, making it ideal for eliminating ground loop issues. The compact, low-profile enclosure is suitable for use in tight spaces around and behind equipment racks, in trucks, and on camera rigs. Key Features

• 4-Channel Single-Mode LC Fiber to 3G-SDI Receiver: Provides four independent channels of 3G/HD/SD-SDI output, facilitating high-quality signal transmission over long distances.
• Long-Distance Signal Transmission: Supports cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable, ensuring reliable connectivity across extended installations.
• Compact and Rugged Design: The low-profile enclosure is designed for use in tight spaces and is suitable for both indoor and outdoor environments.
• Universal Power Supply: Includes a 5-20VDC power supply with international plug connections, providing flexibility for global use.
• 5-Year Warranty: Backed by AJA's 5-year warranty, ensuring long-term reliability and support.

Technical Specifications

• Video Formats:
  • 150 Mbps – 3 Gbps, format agnostic.
• Video Input Digital:
  • 4-channel independent single-mode LC fiber inputs, SMPTE-297 compliant.
  • Nominal Wavelength: 1260 – 1620 nm.
  • Optical Sensitivity: -18 dBm (minimum).
  • Overload Power: -3 dBm (minimum).
• Video Output Digital:
  • 4-channel independent 3G-SDI BNC outputs, SMPTE-259/292/424 compliant.
• Reclocking:
  • Automatic for 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps signals.
  • All other rates are passed through without reclocking.
• Power:
  • 5 watts maximum.
  • Uses 5-20VDC power (universal power supply included).
• Dimensions (W x D x H):
  • 4.6" x 4.02" x 0.85" (117 mm x 102.11 mm x 21.6 mm).
• Weight:
  • 0.8 lbs (0.4 kg).
