AJA COLORBOX In-line HDR/SDR Color Transforms, 12G-SDI and HDMI 2.0, AJA Color, Colorfront, ORION-CONVERT, BBC HLG LUTs, NBCU LUTs

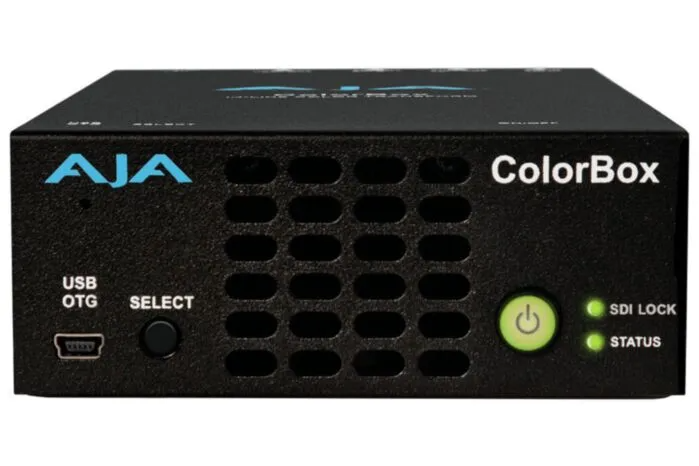

AJA ColorBox - High-Performance Color Management Device Overview The AJA ColorBox is a compact, high-performance converter designed to meet the color management needs of broadcast, live events, and on-set applications. It supports Standard Dynamic Range (SDR), High Dynamic Range (HDR), and Wide Color Gamut (WCG) signals, utilizing 12G-SDI and HDMI 2.0 for single-wire 4K/UltraHD HDR up to 4:2:2 10-bit 60p or 4:4:4 12-bit 30p with a unique color processing pipeline. :contentReference[oaicite:0]{index=0} Key Features

• 12G-SDI and HDMI 2.0 Support: Handles high-bandwidth 12G-SDI and HDMI 2.0 signals, enabling single-wire transmission of high-resolution video formats up to 4K/UltraHD HDR. :contentReference[oaicite:1]{index=1}
• Extensive Color Processing Pipeline: Built around a 33-point 3D LUT processor with tetrahedral interpolation, the AJA Color Pipeline provides additional 4x 1D LUTs and 2x 3x3 matrices that are each individually configurable or can be converted to Proc Amps or RGB Color Correctors. :contentReference[oaicite:2]{index=2}
• Ultra-Low Latency: Delivers ultra-low latency of less than half a video line, making it ideal for live production environments. :contentReference[oaicite:3]{index=3}
• Built-In Frame Store: Features a built-in frame store for up to 4K/UltraHD frame capture and recall, with 14 test patterns and overlay information capabilities. :contentReference[oaicite:4]{index=4}
• Remote Control and Monitoring: Embedded web server for remote control, IP configuration, and monitoring through standard web browsers. :contentReference[oaicite:5]{index=5}
• Extensive API Support: Provides an extensive API for third-party control integrations, enhancing workflow flexibility. :contentReference[oaicite:6]{index=6}
• Compact and Portable Design: The low-profile enclosure fits seamlessly into various production environments, including on-set and live event setups. :contentReference[oaicite:7]{index=7}

Technical Specifications

• Video Formats:
  • 4K/UltraHD: 4096x2160p and 3840x2160p up to 60 fps
  • 2K/HD: 2048x1080p and 1920x1080p up to 60 fps
• Video Inputs:
  • 1x 12G-SDI BNC, compliant with SMPTE 259/292/424/2081/2082 standards
• Video Outputs:
  • 1x 12G-SDI BNC, compliant with SMPTE 259/292/424/2081/2082 standards
  • 1x HDMI 2.0 Type A connector
• Audio Support:
  • Embedded audio pass-through: SDI 16-channel, HDMI 8-channel
• Control:
  • Embedded web server for remote control
  • IP configuration and monitoring through standard web browsers
• Power:
  • Power Consumption: 19 watts
  • Power Supply: 12V DC input; universal power adapter included
• Dimensions (W x D x H):
  • Approximately 5.8" x 3.1" x 1.0" (147 mm x 79 mm x 25 mm)
• Weight:
  • Approximately 0.6 lbs (0.27 kg)
