AJA IPT-10G2-SDI Bridging 3G-SDI to SMPTE ST 2110 Video and Audio

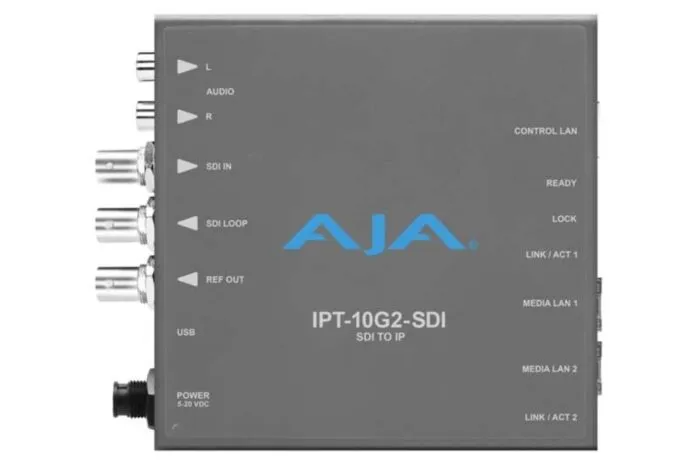

AJA IPT-10G2-SDI - 3G-SDI to SMPTE ST 2110 IP Video and Audio Mini-Converter Overview The AJA IPT-10G2-SDI is a high-performance mini-converter designed to seamlessly integrate traditional 3G-SDI video sources into modern SMPTE ST 2110 IP networks. By receiving baseband video along with up to 16 embedded audio channels over 3G-SDI, the IPT-10G2-SDI encapsulates this data for output as SMPTE ST 2110 over 10 Gigabit Ethernet (GigE). This functionality enables broadcasters and AV professionals to transition smoothly from SDI to IP-based workflows, ensuring compatibility and future-proofing their operations. Key Features

• Bridges 3G-SDI sources to SMPTE ST 2110 IP networks
• Supports up to 1080p60 video formats with 10-bit 4:2:2 processing
• Encapsulates up to 16 channels of embedded SDI audio
• Dual 10 GigE SFP+ cages supporting ST 2022-7 "hitless switching" for redundancy
• Rugged, fanless design suitable for various professional environments
• Web browser-based setup and control via built-in web server
• Mini-USB port for initial network configuration and firmware updates using AJA eMini-Setup software
• Customizable control with AJA REST API
• Five-year international warranty and support

Description The AJA IPT-10G2-SDI serves as a critical tool for professionals aiming to integrate legacy SDI equipment into IP-based infrastructures. Its ability to receive baseband video and up to 16 embedded audio channels over 3G-SDI, then encapsulate and transmit them as SMPTE ST 2110 over 10 GigE, simplifies the transition to IP workflows. This ensures that existing SDI sources, such as cameras and routers, can be utilized within modern IP networks without compromising quality or functionality. One of the standout features of the IPT-10G2-SDI is its support for "hitless switching" through dual 10 GigE SFP+ cages. This redundancy protection, compliant with ST 2022-7, is essential for critical contribution and transmission environments where uninterrupted signal flow is paramount. The mini-converter boasts a rugged, fanless design, making it ideal for deployment in various scenarios, from on-set locations to studio environments. Its quiet operation ensures it does not interfere with audio recording or live productions. User control and configuration are streamlined through a web browser-accessible interface via the built-in web server, allowing for easy setup and monitoring. Additionally, a mini-USB port facilitates initial network configuration and firmware updates using AJA's eMini-Setup software. For developers seeking customized control solutions, the IPT-10G2-SDI offers compatibility with AJA's REST API. Technical Specifications

• Video Input:
  • 1 x 3G-SDI BNC (with loop-through)
  • Supports up to 1080p60, 4:2:2, 10-bit YCbCr
• Audio Input:
  • Up to 16-channel embedded SDI audio, 24-bit, 48 kHz
  • 2 x RCA analog audio inputs (-10 dBu nominal)
• IP Output:
  • SMPTE ST 2110 over 10 GigE
  • 2 x 10 GigE SFP+ cages supporting ST 2022-7 "hitless switching"
• Control Interface:
  • 1 x 1 GigE RJ-45 for control LAN
  • Mini-USB port for initial setup and firmware updates
• Reference Output:
  • 1 x BNC providing analog/tri-level sync, PTP locked
• Power:
  • Universal power supply with locking connector and international plug adapters
  • Optional D-Tap cable for battery power in remote locations
• Dimensions:
  • 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
• Weight:
  • 0.66 lbs (0.3 kg)

The AJA IPT-10G2-SDI is a versatile and reliable solution for professionals seeking to integrate 3G-SDI sources into SMPTE ST 2110 IP networks, offering advanced features and flexibility to meet the evolving needs of the broadcast and production industries.
