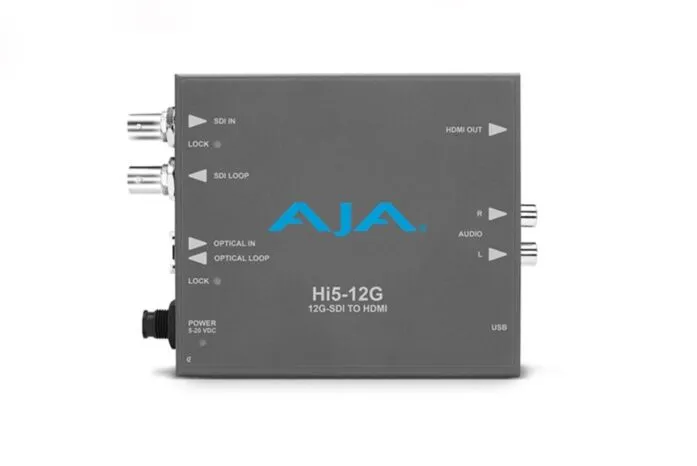

AJA HI5-12G-TR 12G-SDI TO HDMI 2.0 CONVERSION WITH FIBER TRANSCEIVER

The AJA Hi5-12G-R provides high-fidelity 12G-SDI to HDMI 2.0 conversion with an LC Fiber receiver, supporting pristine 4K/UltraHD workflows. It ensures high-quality image fidelity with support for HFR up to 60p and 12-bit workflows, making it ideal for professional monitoring and signal conversion applications.

Key Features:

• 12G-SDI to HDMI 2.0 Conversion: Converts 12G-SDI signals to HDMI 2.0 for seamless integration with modern displays.
• 4K/UltraHD Support: Handles video resolutions up to 4K/UltraHD at 60p, maintaining image quality and high frame rates.
• HDR Support: Generates HDR10 metadata per HDMI v2.0b/CTA-861-G standards and supports Hybrid Log-Gamma (HLG) over HDMI.
• Reclocked SDI Loop-Out: Features a reclocked 12G-SDI loop-out for confidence monitoring or SDI pipeline integration.
• Fiber Receiver Included: Ships with a single-channel LC Fiber receiver for extending 4K signals over long distances.
• Professional Monitoring: Provides a cost-effective monitoring connection for 12G-SDI professional devices to HDMI 2.0 displays.
• 12-bit Workflow Support: Fully supports 12-bit workflows, ensuring compatibility with high-quality production standards.
• USB Configuration: Configurable via USB using AJA Mini-Config software for PC or Mac.
• Universal Power Supply: Operates with 5-16 VDC power; universal power supply included.
• Durable Design: Backed by a five-year warranty, ensuring reliable long-term use.

Specifications:

• Video Input: 1x 12G-SDI single link BNC connector.
• Video Output: 1x HDMI 2.0 Type A connector.
• Fiber Receiver: Includes single-channel LC Fiber receiver for long-distance 12G-SDI signal transmission.
• Reclocked Loop-Out: 1x 12G-SDI reclocked loop-out BNC connector.
• HDR Support: HDR10 metadata generation and HLG support.
• Power Consumption: 5-16 VDC input; universal power supply included.
• Control Interface: 1x USB Mini-B for configuration via AJA Mini-Config software.
• Warranty: Five-year warranty.

Package Includes:

• Hi5-12G-R
• Single-channel LC Fiber receiver
• Universal power supply with international plug adapters

Important Notes:

• Ensure proper cabling for 12G-SDI, HDMI, and fiber optic connections for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
