AJA UDC – 3G-SDI Up/Down/Cross Converter with 2-Channel Audio Output

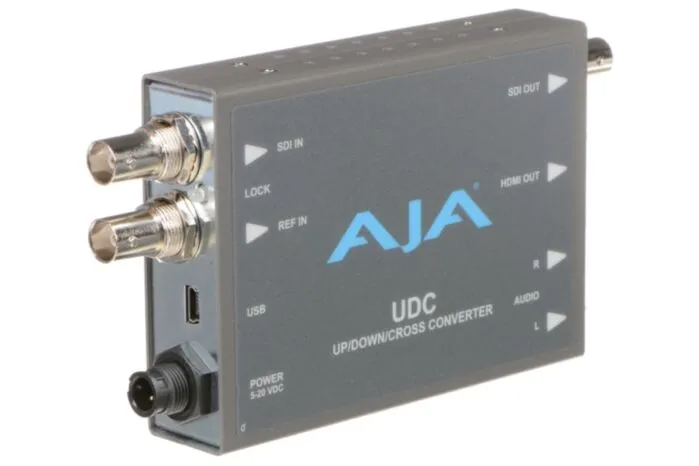

AJA UDC - High-Quality Up/Down/Cross Mini-Converter Overview The AJA UDC is a broadcast-quality Up/Down/Cross Mini-Converter designed to convert between SD, HD, and 3G video formats with exceptional precision. Utilizing AJA's industry-leading conversion technology, the UDC ensures high-quality conversions suitable for a wide range of professional applications. Its compact design and robust feature set make it an essential tool for broadcast and post-production environments. Key Features

• Converts between SD, HD, and 3G video formats
• Supports 1080p resolutions up to 50/60 fps
• Simultaneous SDI and HDMI outputs
• 16-channel embedded SDI audio input and output
• 8-channel HDMI audio output
• 2 RCA-style analog audio outputs at -10dBV (nominal)
• Reference input for genlock: Reference Input, SDI Input, or Free Run
• Configurable via DIP switches or USB port with AJA's Mini-Config software
• Compact and portable design with universal power supply included
• Five-year warranty

Description The AJA UDC Mini-Converter offers a reliable solution for up, down, and cross-converting between various SD, HD, and 3G video formats. It supports a wide range of video resolutions, including 1080p up to 50/60 fps, ensuring compatibility with diverse production requirements. The simultaneous SDI and HDMI outputs provide flexibility for monitoring and distribution purposes. Audio support is comprehensive, with 16-channel embedded SDI audio input and output, along with an 8-channel HDMI audio output. Additionally, the UDC features two RCA-style analog audio outputs at -10dBV, catering to various audio integration needs. For synchronization, the UDC includes a reference input that allows the device to be locked to a local reference, ensuring seamless integration into professional workflows. Configuration is straightforward, either through local DIP switches or via the USB port using AJA's free Mini-Config software, which offers a user-friendly graphical interface for detailed control settings. The compact and portable design of the UDC makes it suitable for use in tight spaces, behind monitors, or directly on camera rigs. It comes with a universal power supply that includes international plug connections, facilitating worldwide use. The locking power connector ensures a secure connection, and an optional P-TAP power cable allows for battery power in remote locations. Technical Specifications

• Video Formats Supported:
  • HD: 1920 x 1080p, 1920 x 1080PsF, 1920 x 1080i, 1280 x 720p
  • SD: 720 x 625i, 720 x 576i, 720 x 480i
• Video Input:
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424
• Video Output:
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424
  • 1x HDMI v1.4a
• Audio Input:
  • 16-channel embedded SDI audio
• Audio Output:
  • 16-channel embedded SDI audio
  • 8-channel HDMI audio
  • 2x RCA-style analog outputs at -10dBV (nominal)
• Control:
  • DIP switch configuration
  • USB port for configuration via AJA Mini-Config software on PC/Mac
• Power:
  • Uses 5-20 VDC power (universal power supply included)
• Dimensions:
  • 5.8 x 3.1 x 1 inches (147 x 79 x 25 mm)

The AJA UDC Mini-Converter combines high-quality video conversion with a compact and user-friendly design, making it an excellent choice for professionals seeking reliable performance in up, down, and cross-conversion tasks.
