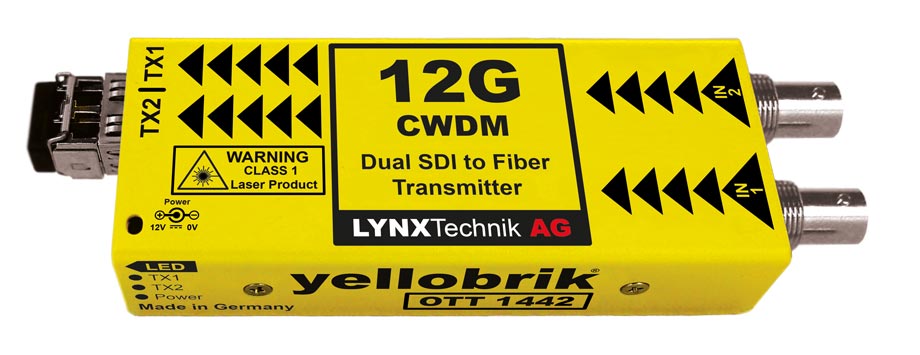

Lynx Technik yellobrik OTT 1442 Dual Channel 12G SDI to Fiber Transmitter (CWDM)

The OTT 1442 is engineered to address the challenges associated with distributing uncompressed broadcast-quality video signals over extended distances. When paired with a dual-channel 12G fiber optic to SDI receiver, such as the yellobrik ORR 1402, it forms a cost-effective optical transmission system capable of handling two independent signals up to 12Gbit/s (4096x2160 at 60Hz), ensuring full uncompressed quality. Each of the two channels operates independently, automatically detecting and re-clocking any 270Mbit/s, 1.5Gbit/s, 3Gbit/s, or 12Gbit/s SDI source before optical transmission. The module is fully compatible with 3G Level A and Level B formats. :contentReference[oaicite:5]{index=5}

Key Features

• Dual-channel operation
• Supports SDI video inputs up to 12Gbit/s (2160p60)
• 3G Level A and Level B support (all formats)
• Auto re-clocking at 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Error-free optical transmission
• Transmission distance up to 10 km (6.2 miles) at 12Gbit/s
• Duplex LC/PC single-mode optical connections
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Inputs

• 2 x SDI video on 75 Ohm BNC connectors
• Compliant with:
  • SMPTE 2082-1 (12Gbit/s)
  • SMPTE 2081-1 (6Gbit/s)
  • SMPTE 424M (3Gbit/s)
  • SMPTE 292M (1.5Gbit/s)
  • SMPTE 259M (270Mbit/s)
  • DVB-ASI
• Multi-standard operation from 270Mbit/s to 12Gbit/s
• Multi-rate re-clocking at 270Mbit/s, 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Automatic cable equalization (using Belden 1694A cable):
  • Up to 70m at 12Gbit/s
  • Up to 100m at 6Gbit/s
  • Up to 180m at 3Gbit/s
  • Up to 250m at 1.5Gbit/s
  • Up to 350m at 270Mbit/s

Fiber Optic Outputs

• 2 x fiber optic outputs (single-mode)
• Duplex LC/PC connectors
• Wavelengths: Nine pairs of CWDM wavelengths available
• Transmission distance: Up to 10 km (6.2 miles) at 12Gbit/s*
• Optical power output: -2dBm to +3dBm

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 3.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Transmission distances are approximate. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to assess link losses and perform optical budget calculations to ensure proper operation.
