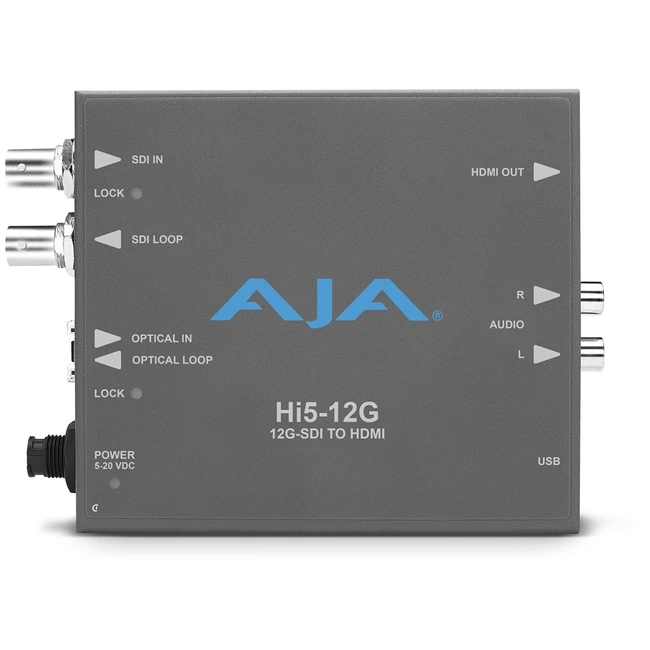

AJA Hi5-12G 12G-SDI to HDMI 2.0 Mini-Converter (HI5-12G-R0) with HDR Support

The AJA HI5‑12G‑R0 is a compact, standalone 12G‑SDI to HDMI 2.0 mini‑converter, delivering pristine 4K/UltraHD 60p signal conversion with single‑cable simplicity and high frame rate support.

• Converts 12G‑SDI to HDMI 2.0b up to UHD 4K 60p (supporting 4:4:4, 4:2:2, 4:2:0 at 12‑bit)
• Includes reclocked SDI loop‑out for confidence monitoring or pass‑through :contentReference[oaicite:1]{index=1}
• Generates HDR metadata (HDR10, HLG over HDMI in accordance with CTA‑861‑G) :contentReference[oaicite:2]{index=2}
• Passes up to 8 channels of SDI‑embedded audio to HDMI output; also provides 2‑channel analog RCA output :contentReference[oaicite:3]{index=3}
• LED indicates input signal type (SD, HD, 3G, 6G, 12G) via color‑coded display :contentReference[oaicite:4]{index=4}
• Configurable via USB and Mini‑Config software for firmware updates and mode settings :contentReference[oaicite:5]{index=5}
• Powered by 5–20 VDC (universal power supply included) :contentReference[oaicite:6]{index=6}
