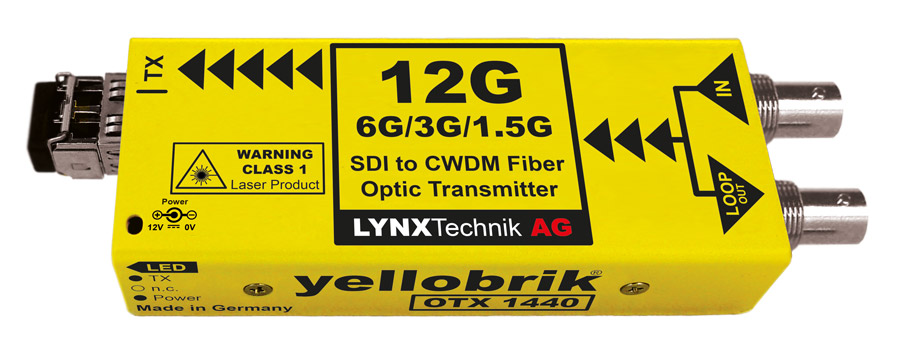

Lynx Technik yellobrik OTX 1440 12G, 6G, 3G, HD SDI to Fiber Optic Transmitter (CWDM)

The OTX 1440 is engineered to address the challenges associated with distributing uncompressed broadcast-quality video signals over extended distances. When paired with a compatible fiber optic to SDI receiver, such as the ORX 1400, it forms a cost-effective optical transmission system capable of handling signals up to 12Gbit/s (4096x2160 at 60Hz), ensuring full uncompressed quality. The module operates automatically, detecting the SDI video format, reclocking it, and transmitting it over the fiber optic connection. A reclocked electrical SDI loop output is also provided for monitoring or distribution purposes. The OTX 1440 supports 12G, 6G, 3G, and 1.5G SDI video standards and offers up to 18 selectable wavelengths for comprehensive CWDM compatibility. :contentReference[oaicite:5]{index=5}

Key Features

• Supports 12G, 6G, 3G, and 1.5G SDI video inputs
• 3G Level A and Level B support (all formats)
• Automatic reclocking at 1.5G, 3G, 6G, and 12G
• Provides error-free optical transmission
• Includes a reclocked SDI loop output
• Offers multiple selectable wavelengths for CWDM compatibility
• Utilizes a simplex LC single-mode optical connection
• Supports hot-swapping and hot-plugging

Technical Specifications

SDI Video Input

• 1 x SDI video input and 1 x SDI reclocked loop output
• 75 Ohm BNC connectors
• Compliant with SMPTE standards:
  • SMPTE 2082-1 (12Gbit/s)
  • SMPTE 2081-1 (6Gbit/s)
  • SMPTE 424M (3Gbit/s)
  • SMPTE 292M (1.5Gbit/s)
• Multi-rate reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Automatic cable equalization:
  • Up to 80m at 12Gbit/s
  • Up to 90m at 6Gbit/s
  • Up to 150m at 3Gbit/s
  • Up to 260m at 1.5Gbit/s

Fiber Optic Output

• 1 x fiber optic output (single-mode)
• Simplex LC connector
• Supports up to 18 CWDM wavelengths (1270nm to 1610nm in 20nm steps)
• Transmission distance: Up to 10 km (6.2 miles) at 12Gbit/s*

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 3.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Transmission distances are approximate. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to assess link losses and perform optical budget calculations to ensure proper operation.
