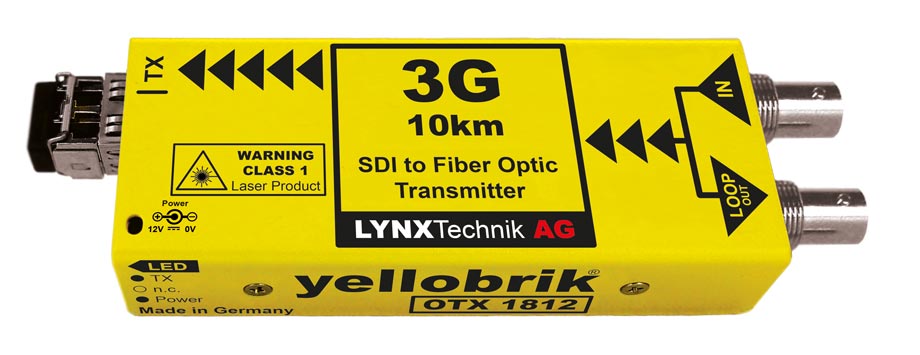

Lynx Technik yellobrik OTX 1812-SC 3G SDI to Fiber Optic Transmitter

The OTX 1812-SC addresses the challenges of distributing uncompressed broadcast-quality video signals over extended distances. By converting SDI signals to optical, it enables seamless transmission without compromising quality. When paired with a compatible fiber optic to SDI receiver, such as the yellobrik ORX 1802, it forms a cost-effective solution for transmitting signals up to 1080p60 (3Gbit/s). The module auto-detects and reclocks any 270Mbit/s, 1.5Gbit/s, and 3Gbit/s SDI source prior to optical transmission and is fully compatible with 3G Level A and Level B formats. :contentReference[oaicite:4]{index=4}

Key Features

• Supports SDI video inputs up to 3Gbit/s (1080p60)
• 3G Level A and Level B support (all formats)
• Auto reclocking for 270Mbit/s, 1.5Gbit/s, and 3Gbit/s
• Error-free optical transmission
• Reclocked SDI loop-out connection
• SC single-mode fiber connection
• Transmission distance up to 10 km (6.2 miles) at 3Gbit/s over single-mode fiber
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Input

• 1 x SDI video input on 75 Ohm BNC connector
• 1 x SDI reclocked loop output on 75 Ohm BNC connector
• Standards: SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate reclocking: 270Mbit/s, 1.5Gbit/s, 3Gbit/s
• Electrical return loss: >15dB to 1.5GHz, >10dB up to 3GHz
• Automatic cable equalization (Belden 1694A cable):
  • 250m at 270Mbit/s
  • 220m at 1.5Gbit/s
  • 150m at 3Gbit/s

Optical Output

• 1 x fiber optic output
• SC single-mode fiber connection
• Compliant with SMPTE 297M - 2006
• Wavelength: 1310nm
• Optical power: -8 dBm to -3dBm
• TX active LED indicator on the side of the module
• Maximum distance: up to 10 km (6.2 miles) at 3Gbit/s over single-mode fiber

Power Requirements

• Input voltage: +12V DC (supports 7 - 24V DC input range)
• Power consumption: Approximately 1.9W nominal
• Power LED indicator on the side of the module

Physical Characteristics

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTX 1812 SC: 3Gbit SDI to Fiber Optic Transmitter - 10km (Single-mode Fiber SC Connector)
• ORX 1802: 3G Fiber Optic to SDI Receiver
• RFR 1200: High-power yellobrik 19” 1RU Rack Frame
• RFR 1001: yellobrik Mounting Bracket
• P-TAP 1000: P-TAP Battery Adapter Cable
• XLR 1000: 4 Pin XLR Camera Battery Adapter Cable
• LC/SC Sim: LC Connector to SC Connector Adapter Kit
• LC/ST Sim: LC Connector to ST Connector Adapter Kit
