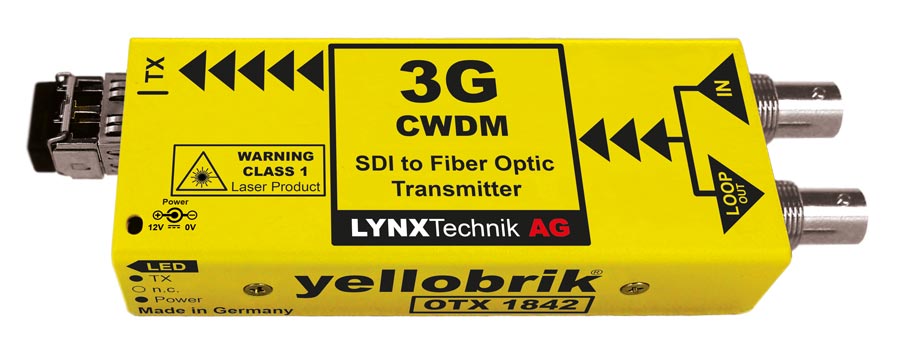

Lynx Technik yellobrik OTX 1842 3Gbit SDI to Fiber Optic Transmitter (CWDM)

The OTX 1842 is a compact CWDM SDI to fiber optic transmitter designed to overcome the limitations associated with distributing uncompressed broadcast-quality video signals over long distances. When paired with a fiber optic to SDI receiver (e.g., yellobrik ORX 1802), it provides a cost-effective optical transmission system for signals up to 1080p60 (3Gbit/s), preserving full uncompressed quality. With 18 selectable wavelengths, the OTX 1842 ensures full CWDM compatibility.

Key Features

• Supports SDI video inputs up to 3Gbit/s (1080p60)
• Compatible with 3G Level A and Level B formats (all)
• Auto reclocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s
• Reclocked SDI loop output
• 18 selectable wavelengths (ITU-T G.694.2)
• Error-free optical transmission
• Transmission distance up to 40 km (24.85 miles) at 3Gbit/s
• Simplex LC single-mode optical connection
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Input

• 1 x SDI input on 75 Ohm BNC connector
• 1 x SDI reclocked loop output on 75 Ohm BNC connector
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate reclocking: 270Mbit/s, 1.5Gbit/s, 3Gbit/s
• Electrical return loss:
  • >15dB up to 1.5GHz
  • >10dB up to 3GHz
• Automatic cable equalization (Belden 1694A cable):
  • Up to 340m at 270Mbit/s
  • Up to 150m at 1.5Gbit/s
  • Up to 120m at 3Gbit/s

Fiber Optic Output

• 1 x fiber optic output
• Simplex (single-mode) LC/PC connection
• Compliant with SMPTE 297M-2006
• 18 selectable wavelengths per ITU-T G.694.2:
  • 1270nm
  • 1290nm
  • 1310nm
  • 1330nm
  • 1350nm
  • 1370nm
  • 1390nm
  • 1410nm
  • 1430nm
  • 1450nm
  • 1470nm
  • 1490nm
  • 1510nm
  • 1530nm
  • 1550nm
  • 1570nm
  • 1590nm
  • 1610nm
• Optical power: -1dBm
• TX active LED on side of module
• Maximum transmission distance: 40 km (24.85 miles) at 3Gbit/s

Power Requirements

• Input Voltage: +12V DC nominal (supports 7 - 24V DC input range)
• Power Consumption: 1.9W nominal
• Power LED on side of module

Physical Characteristics

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)
