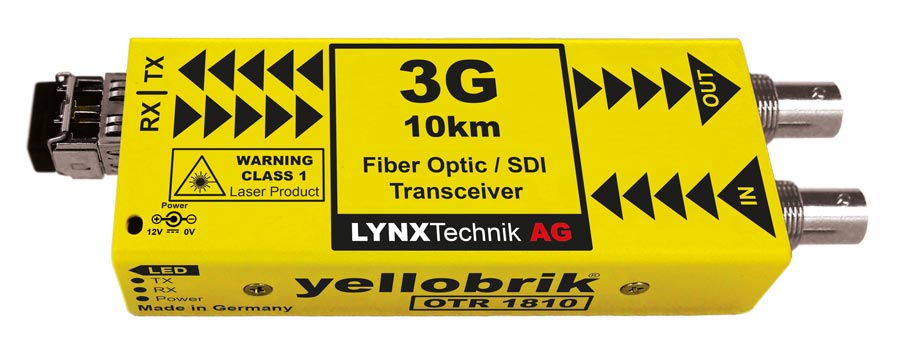

Lynx Technik yellobrik OTR 1810-1 3G Fiber Optic / SDI Transceiver

The OTR 1810-LC transceiver is designed to facilitate the seamless transmission and reception of uncompressed broadcast-quality video signals over long distances. It auto-detects and re-clocks any 270Mbit/s, 1.5Gbit/s, or 3Gbit/s SDI source prior to conversion, ensuring signal integrity and compatibility with 3G Level A and Level B formats. The module's compact design and hot-swappable functionality make it a versatile solution for various broadcast and professional video applications.

Key Features

• Integrated SDI fiber receiver and transmitter in a single module
• Supports SDI video up to 3Gbit/s (1080p60)
• Compatible with 3G Level A and Level B formats
• Auto re-clocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s
• Error-free optical connections
• Single-mode version with duplex LC optical connection
• Supports transmission distances up to 10 kilometers (6.2 miles) at 3Gbit/s
• Hot-swappable and hot-pluggable design

Technical Specifications

SDI Video

• 1 x SDI input and 1 x SDI output on 75 Ohm BNC connectors
• Compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M, and DVB-ASI standards
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate re-clocking at 270Mbit/s, 1.5Gbit/s, and 3Gbit/s
• Electrical return loss: >15dB to 1.5GHz; >10dB to 3GHz
• Automatic cable equalization:
  • Up to 250m at 270Mbit/s
  • Up to 220m at 1.5Gbit/s
  • Up to 150m at 3Gbit/s (using Belden 1694A cable)

Fiber Optic

• 1 x fiber optic input and 1 x fiber optic output
• Duplex (single-mode) using LC/PC connections
• Compliant with SMPTE 297M-2006
• Transmitter wavelength: 1310nm
• Optical power: -5 dBm (typical)
• Receiver wavelength: 1260nm to 1620nm
• Sensitivity: -16 dBm (minimum)
• Maximum distance: Up to 10 kilometers (6.2 miles) at 3Gbit/s

Power

• +12V DC nominal (supports 7-24V DC input range)
• Power consumption: 2W nominal with SFP
• Power LED indicator on the side of the module

Physical

• Dimensions (including connectors): 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)

Environmental

• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: Up to 90% (non-condensing)

Ordering Information

• OTR 1810-1 LC: 3Gbit Fiber Optic / SDI Transceiver (Single-mode Fiber LC Connector)
• OTR 1810-1 MM: 3Gbit Fiber Optic / SDI Transceiver (Multi-mode Fiber LC Connector)
