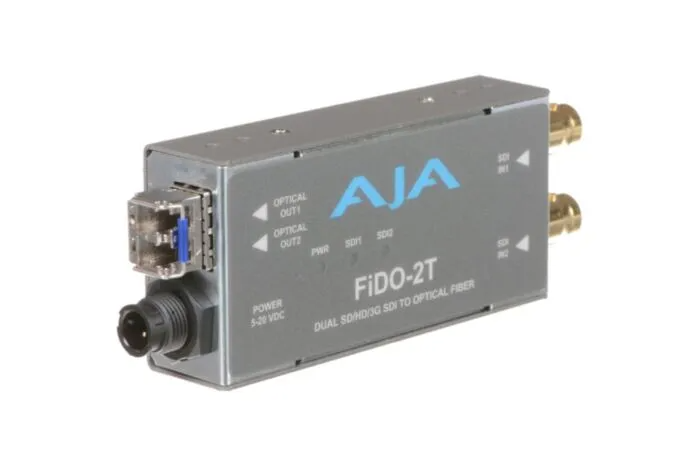

AJA FiDO-2T 2-Channel 3G-SDI to Single-Mode LC Fiber Transmitter

The AJA FiDO-2T is a compact and cost-effective 2-channel 3G-SDI to single-mode LC fiber transmitter, enabling long-distance signal transmission up to 10 km (32,808 ft) with electrical isolation. Each SDI-to-fiber path operates independently, supporting 3G/HD/SD-SDI inputs. The device includes a universal 5-20VDC power supply and is backed by a five-year warranty.

Key Features:

• Dual Independent Channels: Two independent 3G-SDI to single-mode LC fiber conversion paths.
• Long-Distance Transmission: Supports cable runs up to 10 km (32,808 ft) over single-mode fiber.
• Compact Design: Low-profile enclosure suitable for tight spaces around equipment racks, trucks, and cameras.
• Universal Power Supply: Includes a 5-20VDC power adapter with international plug connections.
• Warranty: Covered by a five-year warranty.

Specifications:

• Video Inputs: Two independent 3G-SDI BNC inputs, SMPTE-259/292/424 compliant.
• Fiber Outputs: Two independent single-mode LC fiber outputs, SMPTE-297 compliant.
• Reclocking: Automatic selection for 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps; other rates are passed through without reclocking.
• Power Consumption: Uses 5-20VDC power; universal power supply included.
• Operating Temperature: Safe operating temperature range from 0 to 40°C (32 to 104°F).

Package Includes:

• FiDO-2T Mini-Converter
• Universal power supply with international plug adapters

Important Notes:

• Ensure proper fiber optic cabling is used for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
