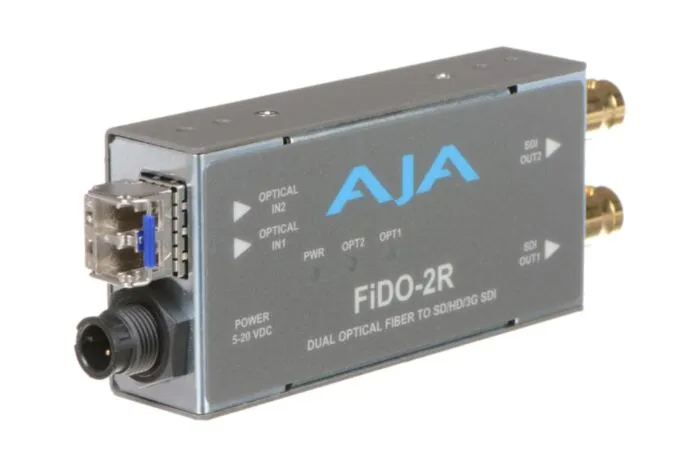

AJA FiDO-2R 2-Channel Single Mode LC Fiber to 3G-SDI Receiver

AJA FiDO-2R - 2-Channel Single Mode LC Fiber to 3G-SDI Receiver Overview The AJA FiDO-2R is a dual-channel fiber-to-3G-SDI receiver that offers unmatched flexibility and cost efficiency for SDI-Fiber conversion. It allows for long cable runs up to 10 km (32,808 ft) with electrical isolation, making it useful for eliminating ground loop problems. FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks, and on camera. Key Features

• Dual-Channel Conversion: Two independent channels for converting single-mode LC fiber to 3G-SDI outputs.
• Long-Distance Signal Transmission: Supports cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
• Compact and Portable Design: Low-profile enclosure suitable for tight spaces and portable applications.
• Universal Power Supply: Includes a universal power supply with international plug connections for use around the world.
• Robust Construction: Designed for durability in various environments, including studios, OB trucks, and field applications.

Technical Specifications

• Video Formats: 150 Mbps - 3 Gbps, format agnostic.
• Video Input: 2-channel independent single-mode LC fiber inputs, SMPTE-297 compliant.
• Video Output: 2-channel independent 3G-SDI BNC outputs, SMPTE-259/292/424 compliant.
• Reclocking: Supports 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, and 2.970 Gbps rates; all other rates are passed through without reclocking.
• Power Supply: Uses 5-20VDC power; universal power supply included.
• Operating Temperature: Safe operating temperature range from 0 to 40°C (32 to 104°F).
• Storage Temperature: Safe storage temperature range from -40 to 60°C (-40 to 140°F).
