AJA HA5-12G HDMI 2.0 to 12G-SDI Converters

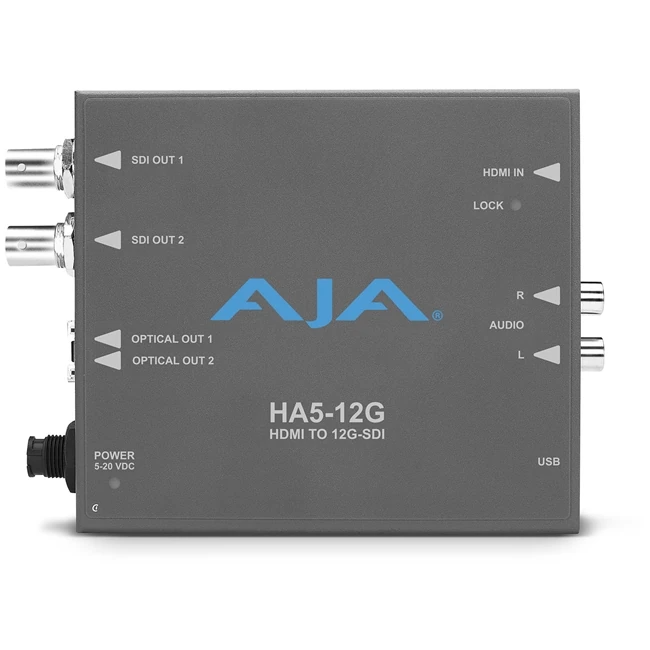

AJA HA5-12G - HDMI 2.0 to 12G-SDI Converter Overview The AJA HA5-12G is a compact converter that transforms an HDMI 2.0 input into two 12G-SDI single-link outputs, supporting up to 4K/UltraHD resolutions at 60p. This facilitates the transmission of high-resolution video over long distances using a single SDI cable, simplifying cabling requirements and ensuring signal integrity. Key Features

• HDMI 2.0 to 12G-SDI Conversion: Converts HDMI 2.0 inputs to dual 12G-SDI outputs, enabling seamless integration with professional SDI equipment.
• 4K/UltraHD Support: Handles video resolutions up to 4096x2160 at 60 frames per second, ensuring compatibility with high-definition sources.
• Embedded Audio: Supports up to 8 channels of audio embedded in the HDMI source or 2-channel analog audio via RCA inputs, providing flexibility in audio integration.
• EDID Emulation: Ensures the connected HDMI source continuously supplies preferred video formats, enhancing compatibility and stability.
• High Frame Rate (HFR) Support: Capable of handling 4K/UltraHD signals at 50 or 60 fps, delivering smooth motion for high-frame-rate content.
• Long Cable Support: The equalized HDMI input supports cable runs up to 30 meters using 24-gauge cable, providing flexibility in setup and installation.

Technical Specifications

• Video Input:
  • 1x HDMI 2.0 Type A connector
• Video Outputs:
  • 2x 12G-SDI BNC connectors
• Audio Input:
  • 2x RCA connectors for analog audio
• Supported Formats:
  • 4K/UltraHD: 4096x2160 and 3840x2160 up to 60p
  • 2K/HD: 1920x1080 and 1280x720 up to 60p
• Power Supply: 5-20 VDC power; universal power supply included
• Dimensions (W x D x H): 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
• Weight: Approximately 0.5 lbs (0.23 kg)
