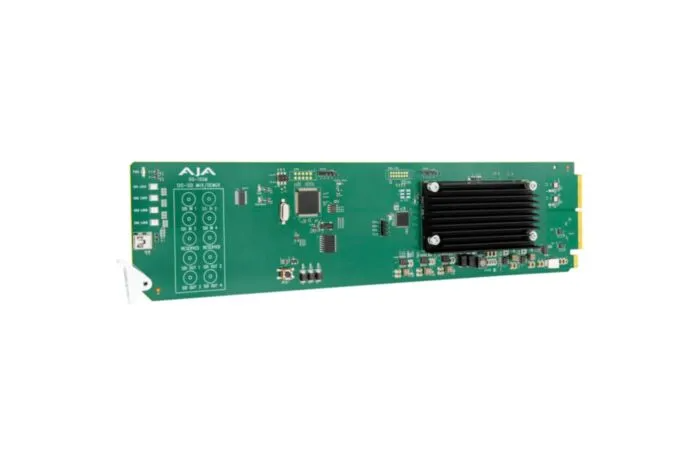

AJA OG-12GM Converter – 12G-SDI Muxer/DeMuxer, openGear

The AJA OG-12GM is an openGear-compatible card designed for bidirectional conversion between 12G-SDI and quad-link 3G-SDI signals. It supports 4K, UltraHD, 2K, HD, and SD workflows, making it a versatile solution for broadcast and production environments.

Key Features:

• 12G-SDI and Quad-Link 3G-SDI Conversion: Enables seamless conversion between single-link and quad-link SDI signals.
• Signal Format Support: Supports Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings.
• Embedded Audio: Passes up to 16 channels of embedded SDI audio.
• HDR Compatibility: Includes support for High Dynamic Range (HDR) metadata pass-through.
• Remote Configuration: Configurable via Ross DashBoard software for remote operation.
• openGear Frame Compatibility: Designed for use with OG-X-FR and OG-3-FR openGear frames.

Specifications:

• Video Formats: Supports resolutions from SD to 4K, including UltraHD and 2K.
• Bit Rates: Compatible with 12G, 6G, 3G, and 1.5G SDI bit rates.
• Power Consumption: 13 watts.
• Slot Requirement: Occupies two slots in openGear frames.

Package Includes:

• OG-12GM Card
• Rear I/O Module

Important Notes:

• Requires installation in an openGear-compatible frame.
• Refer to the product manual for detailed installation and operation instructions.
