AJA OG-3GDA-2X4 2x4 or 1x8 3G-SDI Reclocking DA, DashBoard Support

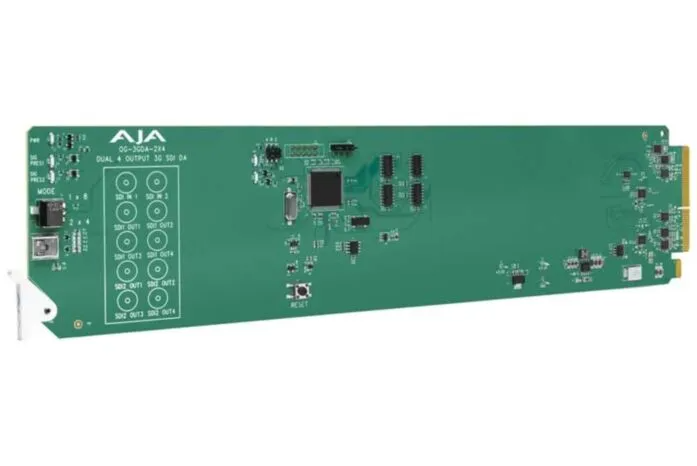

AJA OG-3GDA-2x4 - openGear 2x4 3G-SDI Reclocking Distribution Amplifier Overview The AJA OG-3GDA-2x4 is an openGear-compatible 3G-SDI distribution amplifier designed for high-quality signal distribution. It features automatic equalization of incoming 3G-SDI signals and reclocks outputs to four 3G-SDI outputs per input. Alternatively, it can function as a 1x8-channel distribution amplifier, allowing the same signal to be sent to eight destinations simultaneously. This dual-input capability effectively doubles the number of distribution amplifiers in limited frame space. A 10x BNC rear connector module is included. :contentReference[oaicite:0]{index=0} Key Features

• Dual 1x4 or Single 1x8 Modes: Operates in dual 1x4 mode with two independent inputs, each with four outputs, or in single 1x8 mode with one input distributed to eight outputs. :contentReference[oaicite:1]{index=1}
• Automatic Signal Equalization and Reclocking: Automatically equalizes incoming 3G-SDI signals and reclocks outputs to ensure signal integrity over long cable runs. :contentReference[oaicite:2]{index=2}
• openGear Compatibility: Fully compatible with the openGear standard, allowing integration into existing openGear frames for high-density installations. :contentReference[oaicite:3]{index=3}
• DashBoard Support: Supports DashBoard software for remote control and monitoring on Windows, macOS, or Linux, providing convenient configuration and status monitoring. :contentReference[oaicite:4]{index=4}
• Compact Design: The openGear form factor enables high-density installation, making it suitable for broadcast and professional video environments where space is at a premium. :contentReference[oaicite:5]{index=5}

Technical Specifications

• Video Formats:
  • 150 Mbps – 3 Gbps, format agnostic
• Input:
  • 1x 3G-SDI BNC (1x8 mode)
  • 2x 3G-SDI BNC (2x4 mode)
• Outputs:
  • 8x 3G-SDI BNC
  • 4 outputs non-inverting (1x8 mode)
  • 2 outputs non-inverting (2x4 mode)
• Reclocking:
  • Automatic reclocking of outputs to maintain signal integrity
• Control:
  • DashBoard network control and monitoring
• Dimensions:
  • openGear standard form factor
• Power Consumption:
  • 4.5 watts
• Operating Temperature:
  • 0 to 40 degrees Celsius
