AJA OG-HA5-12G openGear HDMI 2.0 to 12G-SDI Conversion

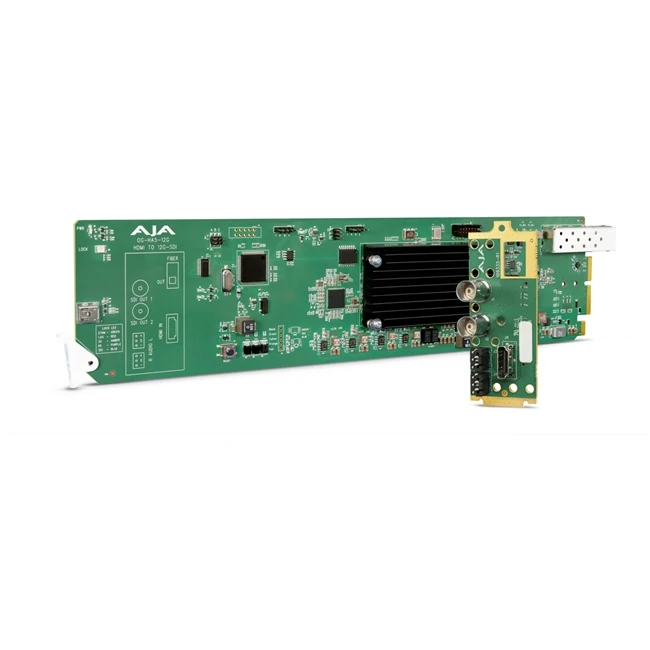

The AJA OG-HA5-12G is an openGear-compatible card that converts HDMI 2.0 inputs to 12G-SDI outputs, enabling seamless integration of HDMI sources into professional 4K/UltraHD single-link SDI workflows. This converter is ideal for broadcast, production, and post-production environments requiring high-quality signal conversion and distribution.

Key Features:

• HDMI 2.0 to 12G-SDI Conversion: Converts HDMI 2.0 inputs to two 12G-SDI outputs, supporting resolutions up to 4K/UltraHD at 60 fps.
• Audio Embedding: Supports up to 8 channels of embedded audio from the HDMI source or 2-channel analog audio via RCA inputs, providing flexibility in audio integration.
• EDID Emulation: Ensures the connected HDMI source continuously supplies preferred video formats by emulating Extended Display Identification Data (EDID).
• High Frame Rate Support: Handles high frame rate inputs, allowing 4K/UltraHD signals at 50 or 60 fps to be output for viewing on compatible displays.
• HDR Support: Analyzes HDR Infoframe data in accordance with HDMI v2.0b/CTA-861-G standards, ensuring accurate HDR signal conversion.
• openGear Compatibility: Designed for use in openGear frames, allowing for easy integration into existing infrastructure and remote control via Ross DashBoard software.
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, ensuring long-term reliability and support.

Specifications:

• Video Input: 1x HDMI 2.0 Type A connector supporting resolutions up to 4K/UltraHD at 60 fps.
• Video Outputs: 2x 12G-SDI BNC connectors providing two identical outputs for flexible signal distribution.
• Audio Inputs: 8-channel embedded audio from HDMI or 2-channel analog audio via RCA connectors.
• Control Interface: Remote configuration through DashBoard Control System for an openGear frame.
• Power Consumption: 4.5 watts.
• Dimensions: openGear standard form factor.

Package Includes:

• OG-HA5-12G openGear card
• Rear I/O module
• Quick start guide

Important Notes:

• Ensure proper HDMI and SDI cabling for optimal performance.
• Refer to the product manual for detailed installation and operational guidelines.
• Compatible with OG-X-FR, OG3, and DFR-8321 openGear frames.
