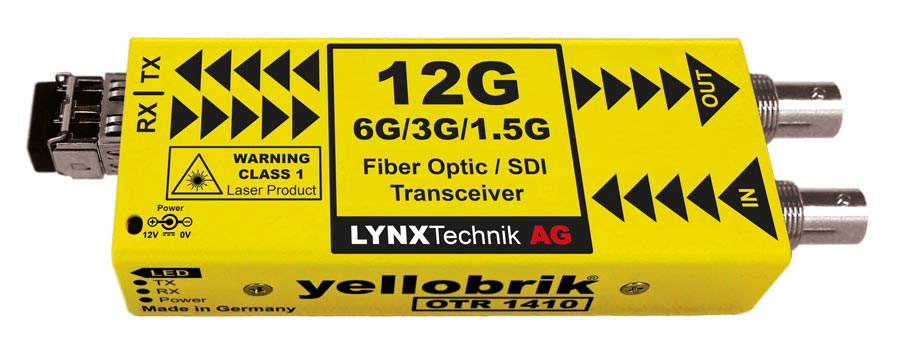

Lynx Technik yellobrik OTR 1410 12G, 6G, 3G, HD SDI / Fiber Optic Transceiver

The OTR 1410 is a fiber optic transceiver that combines both SDI transmission and reception in a single, self-contained package. It effectively addresses the challenges associated with distributing uncompressed, high-bandwidth, broadcast-quality video signals over long distances. Each transceiver features independent transmitter and receiver channels, supporting any SDI signal up to 12Gbit/s (4096×2160 @ 60Hz) while maintaining full uncompressed quality. The device automatically detects the SDI video format, reclocks it, and transmits it over the fiber optic connection. Similarly, it automatically detects and reclocks the optical SDI video input signal, providing it on the SDI output connection. The OTR 1410 supports 12G, 6G, 3G, and 1.5G SDI video standards.

Key Features

• Integrated SDI fiber receiver and transmitter in a single package
• Supports 12G, 6G, 3G, and 1.5G SDI video standards
• Compatible with 3G Level A and Level B formats
• Automatic reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Ensures error-free optical transmission
• LC/PC duplex single-mode fiber connection
• Supports distances up to 10 km (6.2 miles) at 12Gbit/s over single-mode fiber
• Hot swappable and hot pluggable for flexible operation

Technical Specifications

SDI Video Inputs/Outputs

• 1 x SDI video input
• 1 x SDI video output
• 75 Ohm BNC connectors
• Supported standards: SMPTE 2082-1 (12Gbit/s), SMPTE 2081-1 (6Gbit/s), SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s)
• Multi-rate reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Automatic cable equalization:
  • Up to 80m at 12Gbit/s
  • Up to 100m at 6Gbit/s
  • Up to 180m at 3Gbit/s
  • Up to 200m at 1.5Gbit/s

Fiber Optic Interface

• 1 x fiber optic input and output (transceiver)
• LC/PC duplex single-mode fiber connection
• Wavelength: 1310nm
• Transmission distance: Up to 10 km (6.2 miles) at 12Gbit/s over single-mode fiber*

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 3.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Distance is an approximation. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure proper operation.
