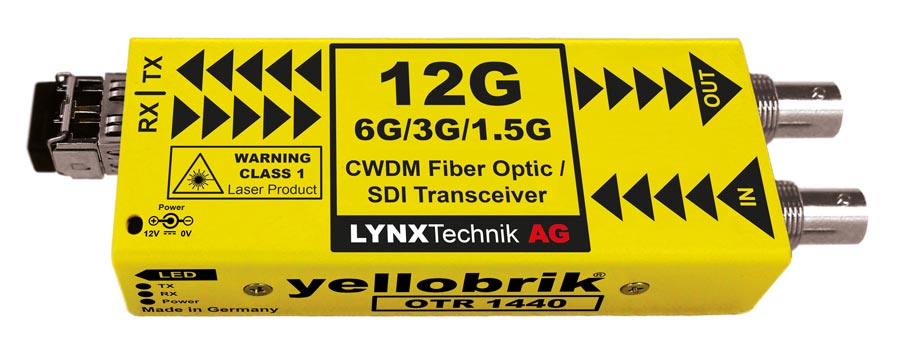

Lynx Technik yellobrik OTR 1440 12G Fiber Optic / SDI Transceiver (CWDM)

The OTR 1440 is a CWDM fiber optic transceiver that integrates both transmission and reception of SDI video signals in a single, compact package. It effectively addresses the challenges associated with distributing uncompressed broadcast-quality video over long distances. Each OTR 1440 transceiver features independent transmitter and receiver channels, accommodating any SDI signal up to 12Gbit/s (4096x2160 @ 60Hz) while maintaining full uncompressed quality. Users can select from 18 transmitter wavelengths for comprehensive CWDM compatibility (ITU-T G.694.2). The OTR 1440 automatically detects and reclocks 1.5Gbit/s, 3Gbit/s, 6Gbit/s, or 12Gbit/s SDI sources prior to conversion and is fully compatible with 3Gbit Level A and Level B formats.

Key Features

• Integrated optical receiver and transmitter
• Supports SDI video up to 12Gbit/s (4096x2160 @ 60Hz)
• Compatible with 3Gbit Level A and Level B formats
• Automatic reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Offers 18 CWDM wavelengths (1270nm to 1610nm) for selection
• Ensures error-free optical connections
• Supports distances up to 10 km (6.2 miles) at 12Gbit/s over single-mode fiber
• Utilizes duplex LC/PC single-mode optical connections
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Inputs/Outputs

• 1 x SDI video input
• 1 x SDI video output
• 75 Ohm BNC connectors
• Compliant with SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
• Supports multi-standard operation from 1.5Gbit/s to 12Gbit/s
• Multi-rate reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Automatic cable equalization:
  • Up to 260m at 1.5Gbit/s (Belden 1694A cable)
  • Up to 150m at 3Gbit/s (Belden 1694A cable)
  • Up to 80m at 6Gbit/s and 12Gbit/s (Belden 4794R cable)

Fiber Optic Interface

• 1 x fiber optic input and output (transceiver)
• Supports selection from 18 CWDM wavelengths (1270nm to 1610nm)
• Compliant with SMPTE 297M-2006
• Hot pluggable
• Single-mode transmit/receive (duplex LC/PC connectors)
• Maximum distance: approximately 10 km (6.2 miles) at 12Gbit/s over single-mode fiber*

Power Requirements

• Input voltage: +12V DC
• Power consumption: 1.9W nominal without SFP; 2.7W nominal with SFP
• Supports 7 - 24V DC input range

Physical Characteristics

• Compact design suitable for standalone use or rack-mounted installation
• Compatible with LYNX Technik's RFR 1200 high-power 19” 1RU rack frame

*Note: Distance is an approximation. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure proper operation.
