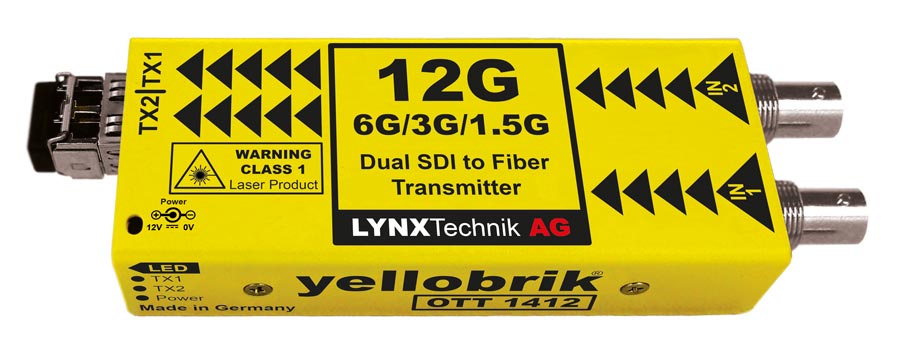

Lynx Technik yellobrik OTT 1412 Dual Channel 12G SDI to Fiber Transmitter

The OTT 1412 is a compact dual-channel SDI to fiber optic transmitter designed to overcome the limitations associated with distributing uncompressed broadcast-quality video signals over long distances. When paired with the dual-channel fiber optic to SDI receiver (e.g., ORR 1402), it offers a cost-effective optical transmission and receiver system for signals up to 12Gbit/s (4096x2160 @ 60Hz), preserving full uncompressed quality.

Key Features

• Dual independent channels
• Supports 12G, 6G, 3G, and 1.5G SDI video inputs
• 3G Level A and Level B support (all formats)
• Auto reclocking at 1.5G, 3G, 6G, and 12G
• Error-free optical transmission
• Up to 10 km (6.2 miles) transmission at 12Gbit/s over single-mode fiber
• Duplex LC/PC single-mode optical connection
• Supports hot swapping and hot plugging

Technical Specifications

SDI Video Inputs

• 2 x SDI video on 75 Ohm BNC connectors (two independent channels)
• Compliant with SMPTE 2082-1, SMPTE 2081-1, SMPTE 424M, SMPTE 292M
• Multi-standard operation from 1.5Gbit/s to 12Gbit/s
• Multi-rate reclocking: 1.5Gbit/s, 3Gbit/s, 6Gbit/s, 12Gbit/s
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Automatic cable equalization:
  • Up to 260m at 1.5Gbit/s (Belden 1694A cable)
  • Up to 150m at 3Gbit/s (Belden 1694A cable)
  • Up to 80m at 12Gbit/s and 6Gbit/s (Belden 4794R cable)

Optical Outputs

• 2 x fiber optic outputs (one for each channel)
• Duplex (single-mode) using LC/PC connections
• Wavelength: 1310nm (each channel)
• Optical power: -5.5dBm to +0.5dBm (each channel)
• TX active LEDs on the side of the module
• Maximum distance: approximately 10 km (6.2 miles) at 12Gbit/s over single-mode fiber*

Power Requirements

• Input Voltage: +12V DC (supports 7 - 24V DC input range)
• Power Consumption: approximately 2.5W nominal

Physical Characteristics

• Dimensions (including connectors): 140 mm x 42 mm x 22 mm (5.51” x 1.65” x 0.86”)
• Weight: 125 g (4.4 oz)
• Operating Temperature: 5°C to 40°C (41°F to 104°F)
• Humidity: up to 90% (non-condensing)

*Note: Distance is an approximation. Actual distances achieved can be longer or shorter depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to determine link losses and perform optical budget calculations to ensure correct operation.
