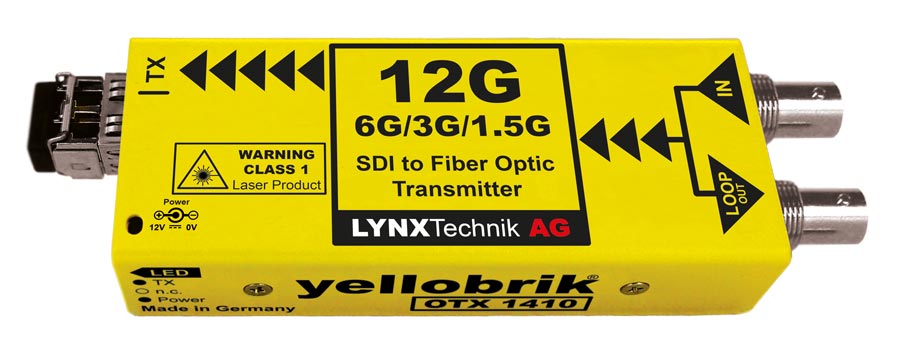

Lynx Technik yellobrik OTX 1410-ST 12G, 6G, 3G, HD SDI to Fiber Optic Transmitter

The OTX 1410 is engineered to address the challenges associated with distributing uncompressed, high-bandwidth, broadcast-quality video signals over extended distances. When paired with a compatible fiber optic to SDI receiver, such as the yellobrik ORX 1400, it forms a cost-effective optical transmission system capable of handling signals up to 12Gbit/s (4096×2160 at 60Hz), ensuring full uncompressed quality. The module operates automatically, detecting the SDI video format, reclocking it, and transmitting it over the fiber optic connection. A reclocked electrical SDI loop output is also provided for monitoring or distribution purposes. The OTX 1410 supports 12G, 6G, 3G, and 1.5G SDI video standards and is available in LC, LC-40, and ST variants. :contentReference[oaicite:4]{index=4}

Key Features

• Supports 12G, 6G, 3G, and 1.5G SDI video inputs
• Compatible with 3G Level A and Level B formats
• Automatic reclocking at 1.5G, 3G, 6G, and 12G
• Provides error-free optical transmission
• Includes a reclocked SDI loop-out connection
• Offers LC and ST connection variants
• Utilizes single-mode fiber connections
• Supports transmission distances:
  • Up to 10 km (6.2 miles) at 12Gbit/s with OTX 1410 LC and ST variants
  • Up to 40 km (24.8 miles) at 12Gbit/s with OTX 1410 LC-40 variant
• Supports hot-swapping and hot-plugging

Technical Specifications

SDI Video Input

• 1 x SDI video input and 1 x SDI reclocked loop output
• 75 Ohm BNC connectors
• Compliant with SMPTE standards:
  • SMPTE 2082-1 (12Gbit/s)
  • SMPTE 2081-1 (6Gbit/s)
  • SMPTE 424M (3Gbit/s)
  • SMPTE 292M (1.5Gbit/s)
• Multi-rate reclocking at 1.5Gbit/s, 3Gbit/s, 6Gbit/s, and 12Gbit/s
• Automatic cable equalization:
  • Up to 80m at 12Gbit/s
  • Up to 100m at 6Gbit/s
  • Up to 180m at 3Gbit/s
  • Up to 200m at 1.5Gbit/s

Fiber Optic Output

• 1 x fiber optic output (single-mode)
• LC or ST connection variants
• Transmission distances:
  • Up to 10 km (6.2 miles) at 12Gbit/s with OTX 1410 LC and ST variants
  • Up to 40 km (24.8 miles) at 12Gbit/s with OTX 1410 LC-40 variant

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 3.0W
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 105 mm x 95 mm x 22 mm (4.13” x 3.74” x 0.87”)
• Weight: 200 g (7.05 oz)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: 0% to 90% (non-condensing)

*Note: Transmission distances are approximate. Actual distances may vary depending on the type of fiber cable and accumulated optical losses in the fiber link. It is recommended to assess link losses and perform optical budget calculations to ensure proper operation.
