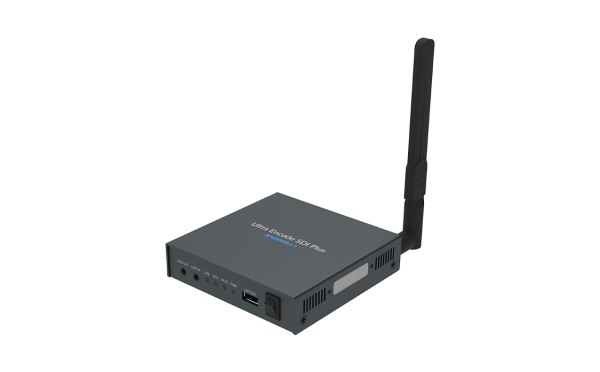

MAGEWELL Ultra Encode SDI Plus

Ultra Encode SDI Plus

• Flexible & Universal Streaming and Recording Encoder
• Live streaming and recording with support for H.264 H.265 NDI? HX2 and NDI? HX3
• Flexible choice of streaming protocols including RTMP RTMPS SRT HLS and more
• Control via web interface or optional Control Hub centralized management software

Input Features
• Support for up to 4096x2160 30fps input and loopthrough signals
• Input & loopthrough 16-Channel SDI embedded audio
• Input audio from 3.5 mm LINE IN

Encoding Features
• Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
• Max bitrate: 62Mbps (NDI? HX3) 32Mbps (Others)
• Support for H.264/HEVC video encoding
• Provide video aspect ratio conversion image rotation and cropping for the main and sub streams
• Encoding 8-channel AAC and audio channels mapping
• vSide-by-Side 3D video encoding

Streaming Features
• Natively support Facebook Twitch YouTube and WOWZA
• Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI? HX2/NDI? HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
• Allow simultaneous 6 sessions over multiple streaming protocols
• Support for streaming schedule

Recording Features
• Record to internal storage (128GB) external USB storage or network attached storage (NFS/CIFS)
• Automatically upload recorded files to remote file storage platform
• Video recordings in MP4 MOV or TS format
• Normal recording and loop recording supported
• Support for recording schedule

Others
• PoE available
• Tally lights for NDI? HX3
• Remote control via Web GUI and Control Hub
• Provide HTTP APIs
