AJA HA5-12G HDMI 2.0 to 12G-SDI Converters

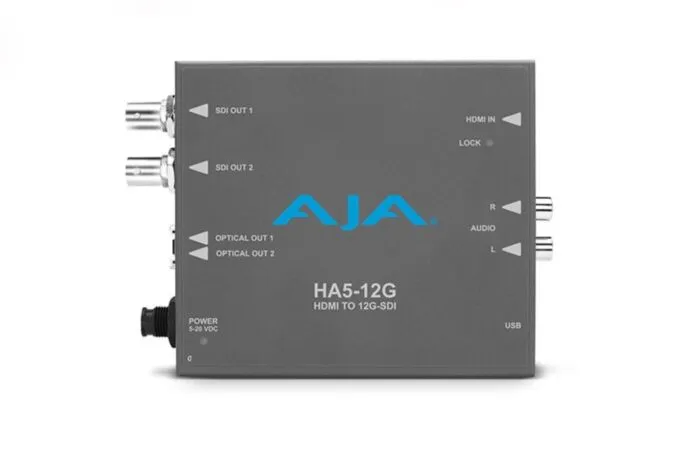

AJA HA5-12G - HDMI 2.0 to 12G-SDI Mini-Converter Overview The AJA HA5-12G is a high-performance mini-converter designed to bridge the gap between consumer HDMI 2.0 outputs and professional 12G-SDI infrastructures. By converting HDMI 2.0 inputs into dual 12G-SDI outputs, the HA5-12G facilitates the seamless integration of 4K/UltraHD sources into SDI-based workflows, reducing the complexity of multiple cable runs and ensuring pristine signal quality. Key Features

• Converts HDMI 2.0 inputs to dual 12G-SDI outputs
• Supports resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) at 60 fps
• High Frame Rate (HFR) support for 4K/UltraHD 60p inputs
• HDR InfoFrame data analysis and pass-through for High Dynamic Range workflows
• EDID emulation ensures continuous and preferred video formats from the source
• Dual 12G-SDI outputs for simplified connectivity
• Supports 8-channel embedded HDMI audio and 2-channel analog audio inputs
• Compact and portable design with universal 5-16 VDC power supply
• USB port for configuration and firmware updates via AJA Mini-Config software
• Five-year warranty

Description The AJA HA5-12G mini-converter is engineered to meet the demands of modern video production environments, where high-resolution and high-frame-rate content is becoming the standard. By converting HDMI 2.0 signals to 12G-SDI, the HA5-12G enables the transmission of 4K/UltraHD content over a single SDI cable, simplifying cabling requirements and ensuring compatibility with professional SDI equipment. One of the standout features of the HA5-12G is its support for High Dynamic Range (HDR) workflows. The device analyzes HDR InfoFrame data from the HDMI input and passes the metadata through to the SDI outputs, preserving the dynamic range and color fidelity of the original content. This capability is essential for productions aiming to deliver the highest quality visuals to their audience. The HA5-12G also addresses the need for flexible audio integration. It supports up to 8 channels of embedded audio from the HDMI input and offers two RCA analog audio inputs for embedding additional audio channels into the SDI output. This versatility ensures that audio and video remain perfectly synchronized throughout the signal chain. To maintain optimal performance, the HA5-12G includes Extended Display Identification Data (EDID) emulation, which communicates preferred video formats to the HDMI source, ensuring a stable and continuous signal. Additionally, the device features dual 12G-SDI outputs, allowing for simultaneous delivery to multiple destinations without the need for additional distribution amplifiers. Configuration and control of the HA5-12G are made simple through the integrated USB port and AJA's free Mini-Config software. This combination allows users to easily update firmware, adjust settings, and monitor the status of the converter in real-time. The compact form factor of the HA5-12G makes it an ideal solution for both studio and field applications. It comes with a universal power supply, including international plug adapters, ensuring compatibility with power sources worldwide. For added flexibility, the device can also be powered via D-Tap, making it suitable for use in mobile and remote production setups. Technical Specifications

• Video Input:
  • 1 x HDMI 2.0b Type A connector
  • Supports up to 4096 x 2160p at 60 fps
  • YCbCr 4:2:2/4:4:4/4:2:0 and RGB 4:4:4
  • 8-, 10-, 12-bit color depth
• Video Outputs:
  • 2 x 12G-SDI BNC connectors
  • SMPTE 2082-1 compliant
• Audio Inputs:
  • 8-channel embedded HDMI audio
  • 2 x RCA analog audio inputs
• Audio Output:
  • 8-channel embedded SDI audio
• Control:
  • USB port for configuration and firmware updates
  • Compatible with AJA Mini-Config software
• Power:
  • 5-16 VDC power input
  • Universal power supply included
• Dimensions:
  • 4.6" x 2.4" x 1.0" (117mm x 61mm x 25mm)
• Weight:
  • 0.6 lbs (0.3 kg)

The AJA HA5-12G is a robust and reliable solution for professionals seeking to integrate HDMI 2.0 sources into 12G-SDI workflows, offering advanced features and flexibility to meet the evolving needs of the broadcast and production industries.
