AJA HDP3 - HDP3-R0: 3G-SDI to DVI-D and Audio Converter

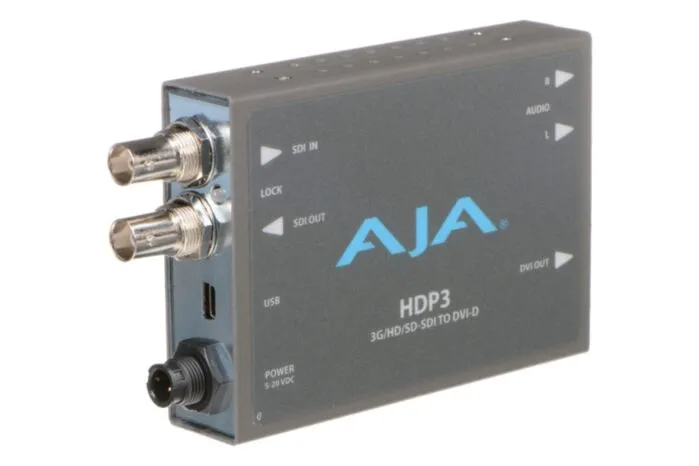

AJA HDP3 - 3G-SDI to DVI-D and Audio Converter Overview The AJA HDP3 is a miniature 3G-SDI to DVI-D converter engineered to interface professional video sources with commonly used digital display devices, including LCD, DLP, and Plasma monitors or projectors. Utilizing a high-quality scaling engine and de-interlacer, the HDP3 automatically resizes 4:3 or 16:9 inputs to fit various DVI-D monitors, ensuring efficient and accurate video display. Key Features

• Converts 3G/HD/SD-SDI to DVI-D
• Supports HDMI 1.3a (via DVI-D connector), including:
  • Deep Color 30-bit video (also supports 24-bit)
  • 2 or 8 channels of embedded audio
• Automatically adapts to popular LCD, DLP, and Plasma monitors (and projectors) up to 1920x1200 and 1080p
• High-quality scaling engine for proper display of 4:3 or 16:9 content
• 1:1 scaling for appropriate monitor configurations
• 2-channel RCA analog audio output (user-assignable channels)
• HD-SDI/SDI looping output
• Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
• Five-year warranty

Description The HDP3 serves as a reliable solution for converting 3G-SDI signals to DVI-D, facilitating the use of cost-effective digital displays in professional video environments. Its advanced scaling engine and de-interlacer ensure that both 4:3 and 16:9 content are displayed accurately, maintaining the integrity of the original video source. With support for Deep Color 30-bit video and embedded audio through the DVI-D connector (compatible with HDMI 1.3a using an adapter), the HDP3 delivers high-quality video and audio output. The device automatically adjusts to various monitor resolutions up to 1920x1200 and 1080p, providing flexibility across different display types. The converter offers a looping SDI output, allowing for the distribution of the SDI signal to additional devices without the need for separate splitters. User-assignable 2-channel analog audio outputs via RCA connectors enable direct audio monitoring, enhancing the versatility of the HDP3 in various setups. Configuration is straightforward through the USB port, with AJA's Mini-Config software providing a user-friendly interface for both PC and Mac users. The compact design of the HDP3 ensures easy integration into existing workflows, making it suitable for a wide range of professional applications. Technical Specifications

• Video Input Formats:
  • 1x 3G-SDI (Level A)
    • (HD) 1920 x 1080p 50, 59.94, 60 fps
  • 1x 1.5G-SDI
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30 fps
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30 fps
    • (HD) 1920 x 1080i 50, 59.94, 60 fps
    • (HD) 1280 x 720p 50, 59.94, 60 fps
  • 1x 270 Mb SDI
    • (SD) 625i 50 fps
    • (SD) 525i 59.94 fps
• Video Input Digital:
  • 1 x 3G-SDI BNC, SMPTE-259/292/424
• Video Output Digital:
  • 1 x DVI-D Type D female connector
• Audio Input Digital:
  • SDI embedded audio, 24-bit, 8-Channel
• Audio Output Digital:
  • DVI embedded audio, 24-bit, 2 or 8-Channel (via HDMI adapter)
  • SDI (looped) embedded audio, 24-bit, 8-Channel
• Audio Output Analog:
  • 2-Channel RCA analog audio output (user-assignable channels)
• Control:
  • USB port for setup and configuration via AJA Mini-Config software
• Dimensions (WxDxH):
  • Approximately 147.32 mm x 78.74 mm x 25.4 mm
• Power:
  • Requires 5-16 VDC power input
  • Includes a universal power supply with international plug adapters
• Warranty:
