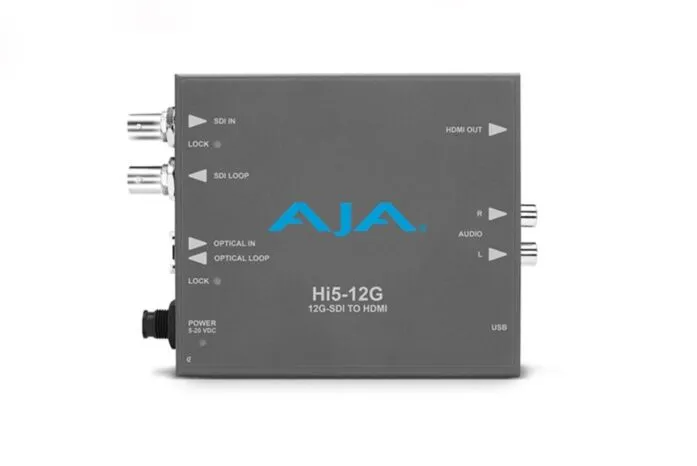

AJA Hi5-12G 4K/UltraHD (12G-SDI) to HDMI 2.0 Converter

AJA Hi5-12G-R-R0 - 12G-SDI to HDMI 2.0 Converter with Fiber Receiver Overview The AJA Hi5-12G-R-R0 is a compact and versatile converter that facilitates the conversion of 12G-SDI signals to HDMI 2.0 outputs, supporting pristine image fidelity and high frame rates up to 60p for 4K/UltraHD. Equipped with a Fiber LC single-channel SFP receiver, it enables the reception of 4K signals over long distances from a fiber-connected source. This makes it an ideal solution for cost-effective monitoring in professional workflows. :contentReference[oaicite:0]{index=0} Key Features

• 12G-SDI to HDMI 2.0 Conversion: Converts 12G-SDI signals to HDMI 2.0, supporting up to 4K/UltraHD resolutions at 60 frames per second. :contentReference[oaicite:1]{index=1}
• Fiber Connectivity: Includes a Fiber LC single-channel SFP receiver, allowing for the reception of 4K signals over long distances from fiber-connected sources. :contentReference[oaicite:2]{index=2}
• High Dynamic Range (HDR) Support: Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports Hybrid Log-Gamma (HLG) over HDMI, ensuring compatibility with HDR workflows. :contentReference[oaicite:3]{index=3}
• Reclocked SDI Loop Out: Features a 12G-SDI single-link input with a reclocked SDI loop out for simplified SDI confidence monitoring or pass-through for SDI pipelines. :contentReference[oaicite:4]{index=4}
• Embedded Audio Support: Supports 8-channel 24-bit embedded audio, as well as pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos. :contentReference[oaicite:5]{index=5}
• USB Configuration: Equipped with a USB port for configuration via AJA's Mini-Config software application on PC or Mac. :contentReference[oaicite:6]{index=6}
• Compact and Portable Design: Its compact form factor makes it suitable for various professional environments, including on-set, in-studio, and in post-production facilities. :contentReference[oaicite:7]{index=7}
• Universal Power Supply: Operates on 5-16 VDC power and includes a universal power supply, ensuring compatibility with various power sources. :contentReference[oaicite:8]{index=8}
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, ensuring long-term reliability and support. :contentReference[oaicite:9]{index=9}

Technical Specifications

• Video Formats:
  • 4K: 4096x2160p at 24, 25, 30, 50, 60 fps
  • UltraHD: 3840x2160p at 24, 25, 30, 50, 60 fps
  • 2K: 2048x1080p at 24, 25, 30, 50, 60 fps
  • HD: 1920x1080p at 24, 25, 30, 50, 60 fps; 1920x1080i at 50, 59.94 fps; 1280x720p at 50, 59.94 fps
  • SD: 720x576i at 50 fps; 720x480i at 59.94 fps
• Video Input:
  • 1x 12G-SDI BNC connector
  • 1x Fiber LC single-channel SFP receiver
• Video Output:
  • 1x HDMI 2.0 Type A connector
  • 1x 12G-SDI reclocked loop out BNC connector
• Audio:
  • 8-channel embedded audio support
  • Pass-through of AC-3 and E-AC-3 compressed audio formats
• Power:
  • 5-16 VDC power input
  • Universal power supply included
• Dimensions (W x D x H):
  • 4.6" x 2.4" x 1.0" (117 mm x 61 mm x 25 mm)
• Weight:
  • 0.6 lbs (0.27 kg)
