AJA OG-12G-AMA 12G-SDI Analog Audio Embedder/Disembedder

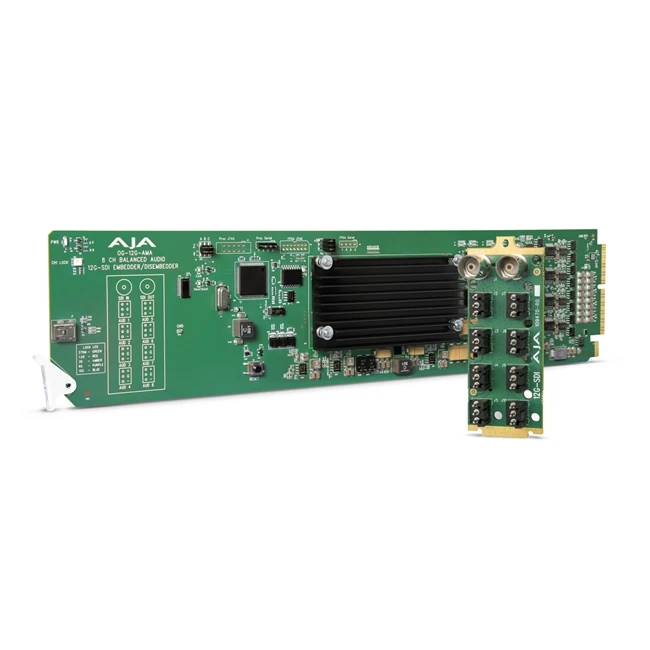

AJA OG-12G-AMA - openGear 12G-SDI Analog Audio Embedder/Disembedder Overview The AJA OG-12G-AMA is an openGear-compatible 8-channel analog audio embedder and disembedder that supports 12G-SDI input and output up to 4K/UltraHD resolutions. It automatically detects and configures to the input video standard, providing seamless integration into professional video workflows. The module utilizes 3-pin terminal block connectors, which can be configured for either audio input or output functionality, offering flexibility in various setups. Key Features

• 12G-SDI Support: Handles high-bandwidth 12G-SDI signals, enabling the transmission of high-resolution video formats up to 4K/UltraHD.
• 8-Channel Balanced Analog Audio I/O: Provides eight channels of balanced analog audio via 3-pin terminal block connectors, with each pair configurable as inputs or outputs.
• Automatic Input Detection: Automatically detects and configures to the input video standard, simplifying setup and ensuring compatibility with various video formats.
• Selectable Audio Embedding/Disembedding: Allows for user-selectable embedding and disembedding on a per-channel-pair basis, enabling the pass-through of existing 12G-SDI input audio or the embedding of analog audio inputs.
• openGear Compatibility: Designed for use in high-density openGear 2RU frames, including AJA's OG-X-FR frame, facilitating integration into existing infrastructures.
• DashBoard Support: Compatible with Ross DashBoard software for remote monitoring and control, providing a unified interface for managing multiple devices.
• Low Power Consumption: Consumes a maximum of 8 watts per card, ensuring energy-efficient operation.
• Five-Year Warranty: Backed by AJA's industry-leading five-year warranty, ensuring long-term reliability and support.

Technical Specifications

• Video Formats:
  • 4K: 4096x2160p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps
  • UltraHD: 3840x2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
  • 2K: 2048x1080p at 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps
  • HD: 1920x1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps; 1920x1080i at 50, 59.94, 60 fps; 1280x720p at 50, 59.94, 60 fps
  • SD: 625i at 50 fps; 525i at 59.94 fps
• Video Input:
  • 1x 12G-SDI BNC, compliant with SMPTE 259/292/424/2081/2082 standards
• Video Output:
  • 1x 12G-SDI BNC, compliant with SMPTE 259/292/424/2081/2082 standards
• Audio Inputs/Outputs:
  • 8x analog audio connections (4 pairs), each pair configurable as inputs or outputs via 3-pin terminal block connectors
  • Digital Audio Converters: 24-bit
  • Embedded Audio Support: SMPTE 272M (SD) and SMPTE 299M (HD/2K/4K)
• Analog Audio Levels:
  • Configurable via software:
    • Pro 1: 0 dBFS = +24 dBu
    • Pro 2: 0 dBFS = +18 dBu
    • Pro 3: 0 dBFS = +15 dBu
    • Consumer 1: 0 dBFS = +12 dBu
• Power Consumption:
  • 8 watts maximum per card
• Frame Compatibility:
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Dimensions:
  • openGear standard form factor
• Weight:
  • Approximately 0.5 lbs (0.23 kg)
