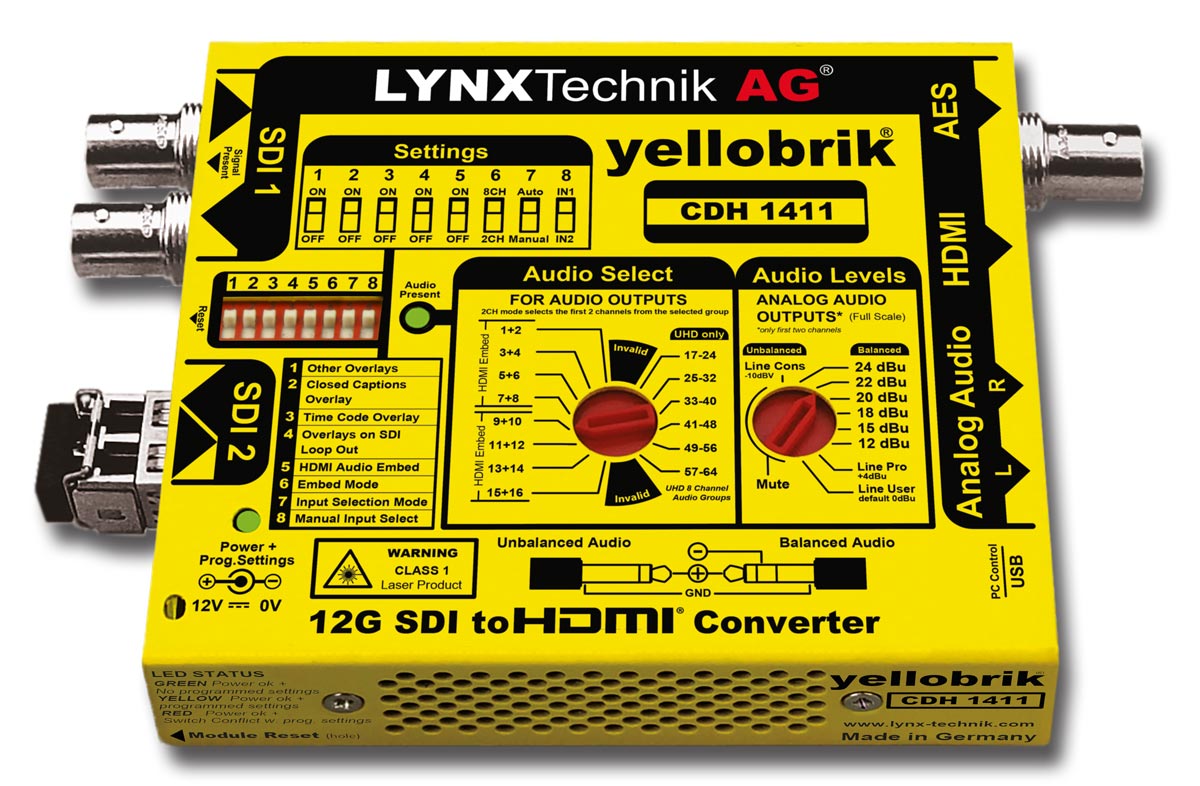

yellobrik CDH 1411 12G SDI to HDMI Converter

The yellobrik CDH 1411 by LYNX Technik is a versatile, compact 12G SDI to HDMI converter designed for professional broadcast, post-production, and AV applications. It supports SDI video input formats up to 12G (2160p) and provides exceptional monitoring capabilities, including HDR and WCG indication, audio level meters, timecode burn-in, and safe area markers.

Key Features:

• Video Conversion: Converts 12G, 6G, 3G, and HD-SDI signals to HDMI with embedded audio.
• Audio Options: De-embeds 2-channel AES or analog audio outputs and supports embedding up to 8 channels into HDMI.
• Monitoring Features: Provides selectable timecode burn-in, closed caption burn-in (CEA-708), 16-channel audio level meters, and Metadata display.
• Advanced Controls: yelloGUI software compatibility for additional customization and monitoring.
• Fiber Connectivity: Optional SDI fiber input/output for long-distance transmission up to 10km (via SFP modules).
• Safe Area Markers: Multiple marker options, aspect ratio settings, and customizable curtain transparency for professional monitoring.

Specifications:

• SDI Input: 1 x SDI input (75 Ohm BNC) supporting SMPTE 2082, 2081, 424M, and 292 standards.
• HDMI Output: HDMI 2.0b Type A connector with 10-bit deep color and embedded audio.
• Audio Output: Left and right analog outputs (balanced/unbalanced) and AES3-id digital output.
• Fiber Input/Output: Singlemode duplex fiber using LC/PC connections (SMPTE 297M compliant).
• Power: 12V DC @ 8.7W nominal (supports 10-24V DC input range).
• Dimensions: 140mm x 90mm x 22mm (5.51” x 3.54” x 0.86”); Weight: 230g.
• Operating Conditions: 5-40°C, 90% humidity (non-condensing).

Applications:

The CDH 1411 is ideal for monitoring SDI signals in broadcast and production environments, converting uncompressed video and audio to HDMI for seamless display. Optional fiber connectivity enables reliable long-distance signal transmission.

Package Includes:

• CDH 1411 Module
• AC Power Supply
• HDMI Cable
• Mini USB Cable

Important Notes:

• This module does not scale input signals; the HDMI output resolution matches the input SDI resolution and frame rate.
• Compatible with yelloGUI software for advanced settings and configurations.
