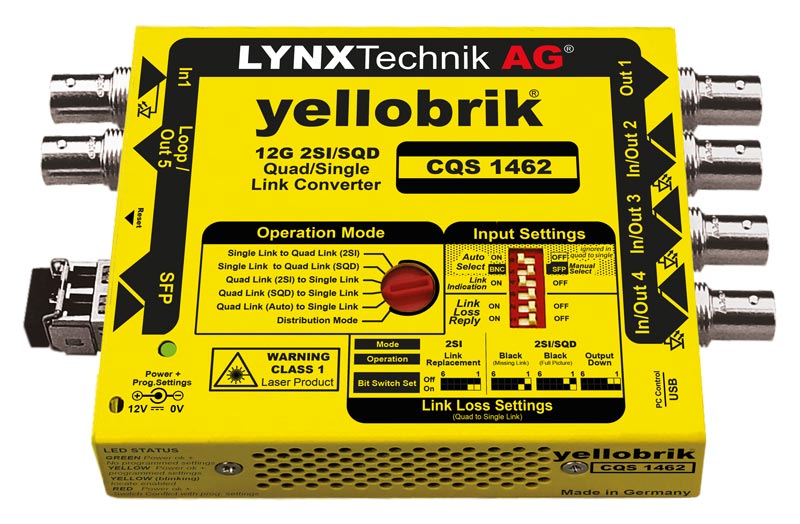

Lynx Technik yellobrik CQS 1462 12G <> 4x3G-SDI Bi-Directional SQD/2SI Quad Link to Single Link Converter

The CQS 1462 is a compact and flexible solution designed to interconnect 6G/12G-SDI quad-link 2SI/SQD devices with single-link 1.5G/3G/6G/12G-SDI equipment. It supports bidirectional conversion between single-link and quad-link formats, accommodating both 2-sample interleave (2SI) and square division (SQD) methods. The module also operates as a distribution amplifier, distributing one SDI signal to multiple outputs, including an optional fiber output. Operational modes can be selected via a local rotary switch or through the LynxCentraal or yelloGUI control software. On-screen overlays facilitate link identification, aiding in troubleshooting connectivity issues or link loss.

Key Features

• Supports 12G/6G/3G/1.5G-SDI video formats
• Bidirectional conversion between single-link and quad-link (2SI/SQD)
• Functions as a 1-to-5+1 distribution amplifier
• Automatic link loss response options for 2SI/SQD
• Optional fiber optic connectivity via integrated SFP port
• Single-link loopback output
• Compatible with LynxCentraal and yelloGUI control software for advanced settings

Technical Specifications

Video Formats Supported

• UHD 4K (3840x2160p) at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
• 3G-SDI (1920x1080p) at 50, 59.94, 60 fps
• HD-SDI (1920x1080i) at 50, 59.94, 60 fps
• HD-SDI (1280x720p) at 50, 59.94, 60 fps
• Color space: YCbCr 4:2:2, 10-bit

Video Inputs

• 1 x 12G-SDI BNC input (SMPTE-292M/424M/2081-1/2082-1 compliant)
• 4 x 3G-SDI (Level A) inputs for quad-link (2SI/SQD) configurations

Video Outputs

• 5 x BNC outputs (configurable as inputs/outputs)
• 1 x SFP port for optional fiber optic output

Operational Modes

• Single-link to quad-link (2SI)
• Single-link to quad-link (SQD)
• Quad-link (2SI) to single-link
• Quad-link (SQD) to single-link
• Auto quad-link to single-link
• Distribution amplifier mode (1-to-5+1)

Control and Monitoring

• Local rotary switch for mode selection
• USB interface for control via LynxCentraal or yelloGUI software
• On-screen overlays for link identification and status monitoring

Power

• 12V DC power input (supports 7-24V DC)
• Power consumption: approximately 4.5W

Physical Characteristics

• Dimensions: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”)
• Weight: 125g (4.4oz)
• Operating temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: up to 90% (non-condensing)

Ordering Information

• CQS 1462: 12G to 4x3G-SDI bidirectional SQD/2SI quad-link to single-link converter
• Optional SFP modules for fiber optic connectivity (e.g., OH-TR-12G-LC transceiver)
• RFR 1001: yellobrik mounting bracket
• RFR 1200: 19” 1RU yellobrik rack frame
• P-TAP 1000 / XLR 1000: battery adapter cables
