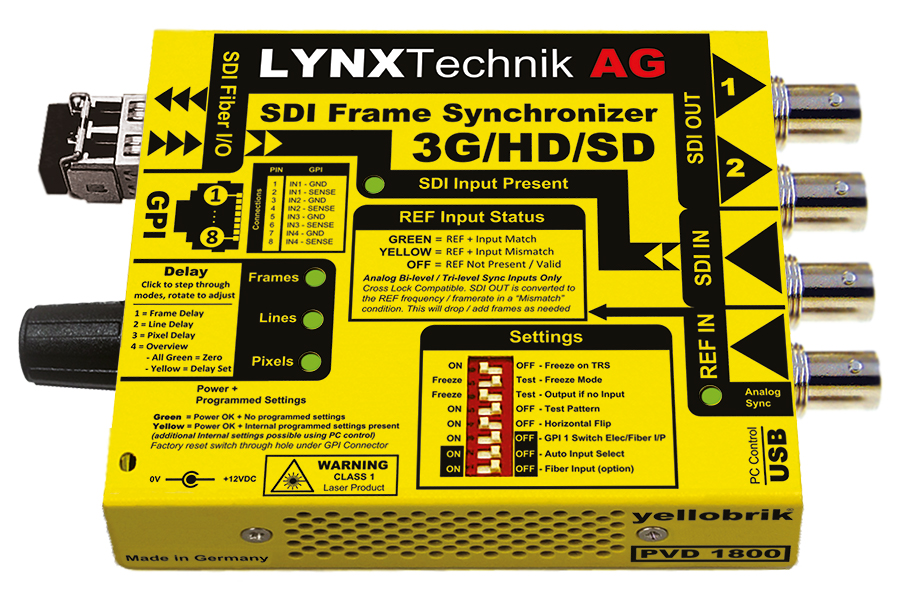

Lynx Technik yellobrik PVD 1800 3Gbit SDI Frame Synchronizer with Up/Down/Cross Converter

The PVD 1800 is engineered to address the challenges of synchronizing asynchronous SDI sources, utilizing robust “flywheel” algorithms to accommodate a wide variety of low-quality signals. It automatically extracts all 16 channels of embedded audio, delays them to match the video processing delay, and re-embeds them, maintaining audio-video synchronization. The module offers up to 30 frames of programmable output delay, adjustable in frames, lines, and pixels, providing precise control over timing. The integrated Up/Down/Cross converter allows conversion between 3G, HD, and SD video standards and features a selectable fast scale mode with less than 10 lines of delay. Additionally, the powerful Region of Interest (ROI) scaler enables users to extract a specific region of the incoming video and output it as a full-format SDI signal. The PVD 1800 is fully compatible with the yelloGUI software package, allowing for comprehensive configuration, control, and firmware updates via PC or Mac. :contentReference[oaicite:4]{index=4}

Key Features

• Supports SDI 3G (Level A and B), HD, and SD formats with automatic detection
• High-quality Up/Down/Cross converter with selectable fast scale mode (<10 lines delay)
• Region of Interest (ROI) scaler for customized output framing
• Converts between 3G Level A and B Dual Link or vice versa
• Optional fiber I/O with auto changeover or GPI switch between electrical and optical input
• Robust “flywheel” synchronization for stabilizing problematic sources
• “Cross lock” compatible reference input for versatile synchronization
• Extracts all 16 channels of audio from SDI input, delays to match video processing, and re-embeds
• Integrated test pattern generator for system testing and alignment
• Up to 30 frames of programmable delay for precise timing adjustments

Technical Specifications

SDI Input

• 1 x 75 Ohm BNC electrical SDI input
• Optional fiber SDI input
• Supports SMPTE 424M (3Gbit/s), SMPTE 292M (1.5Gbit/s), and SMPTE 259M (270Mbit/s) standards
• Automatic video format and standard detection
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Automatic cable equalization (using Belden 1694A cable):
  • Up to 340m at 270Mbit/s
  • Up to 150m at 1.5Gbit/s
  • Up to 110m at 3Gbit/s

SDI Outputs

• 2 x 75 Ohm BNC electrical SDI outputs
• Optional fiber SDI output
• Outputs follow input format
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Timing Jitter:
  • <0.2 UI at 270Mbit/s
  • <1.0 UI at 1.5Gbit/s
  • <2.0 UI at 3Gbit/s
• Alignment Jitter:
  • <0.2 UI at 270Mbit/s
  • <0.2 UI at 1.5Gbit/s
  • <0.3 UI at 3Gbit/s

Reference Input

• Supports SDTV analog 525 or 625 bi-level sync
• Supports HDTV tri-level sync standards (excluding 1080p 50/59.94/60Hz)
• Cross lock compatible
• SMPTE 274M, SMPTE 296M compliant
• 75 Ohm BNC connector

Video Delay

• Timing Adjustment: Up to 30 frames
• Manually adjustable in frame, line, and pixel increments

GPI

• Connector: RJ45 with 4 x External GPI inputs
• GPI 1: Used for Electrical/Optical SDI changeover
• GPI 2: Used to “freeze” the SDI output
• GPI 3: (low) Enable “latch” mode
• GPI 4: (low) Disables “latch” mode

USB

• Mini “Type B” connection
• Used for yelloGUI PC control and firmware updates

Power Requirements

• Input voltage: +12V DC
• Power consumption: Approximately 5.8W (without SFP)
• Supports 7 - 24V DC input range

Physical Characteristics

• Dimensions: 138 mm x 90 mm x 22 mm (5.43” x 3.54” x 0.86”) including connectors
• Weight: 230g (8.11 oz)

Environmental Specifications

• Operating temperature: 5°C to 40°C (41°F to 104°F)
